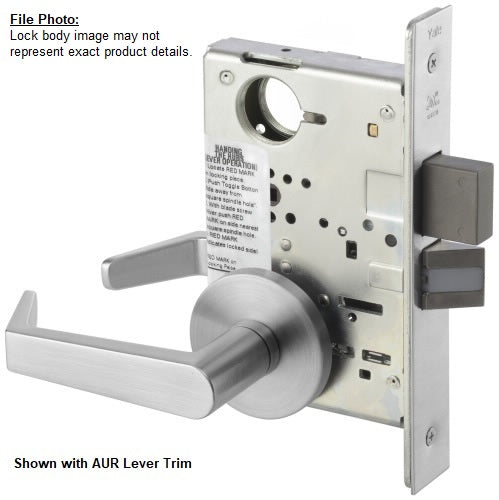

Yale 8822FL Dormitory Mortise Lock (F13), Lever Trim, US26D-Satin Chrome, For 1 3/4-inch Thick Doors

Accentra 8822FL Dormitory Mortise Lock (F13)
ASSA ABLOY ACCENTRA™ 8800 Series Mortise Locks are designed and manufactured for uncompromising strength and durability in a range of commercial applications. Lock installation is made easy with quick lever handing, field reversible latchbolt and standard nonhanded strike. The 8800 Series Mortise Lock ANSI/BHMA Grade 1 certification for long life and durability.

Dormitory/Exit Function:  Latchbolt retracted by knob/lever either side.  Deadbolt operated by key outside and thumb-turn inside.  When the deadbolt is projected, outside knob/lever is automatically locked.  Anti-panic operation. Operating inside knob/lever retracts the latchbolt and deadbolt simultaneously, automatically unlocking outside knob/lever.

Product specs of the Accentra 8822FL Mortise Lock:

• ANSI/BHMA Code: A156.13
• ANSI/BHMA Series: Series 1000
• Backset Depth (Standard): 2 3/4"
• Cylinder: Optional
• Door Thickness (Standard): 1 3/4"
• Handing: Field Reversible
• Latchbolt Throw: 3/4"
• Maximum Backset: 2 3/4"
• Minimum Backset: 2 3/4"
• Maximum Door Thickness: 3 1/4"
• Minimum Door Thickness: 1 3/4"
• Number of Keys: 2 (when cylinder is ordered)
• Strike Type: Curved Lip
• UL Listed: Yes
• ULC Listed: Yes
• UL Cycle above and beyond test completed at 12.3 Million
  Cycles. Verification ID: V572228
• Warranty: 10-year (Mechanical)

Certifications:

• Environmental Product Declaration (EPD)
• CAL FIRE, 3775-0257:0113
• UL-cUL Fire-Rated Up to 3 Hours
• ANSI/BHMA A117.1
• ANSI/BHMA A156.13, Series 1000, Operational and Security Grade 1

• Buy American Act*

  *Domestic Sourcing regulations vary greatly within Federal, state and local government agencies and therefore certain restrictions may apply. Please contact BAACompliance.Americas@assaabloy.com for additional information.
