Accentra (formerly Yale) 6100-A-ALR Rim Exit Device, For Doors up to 36", Sounding Alarm, BSP-Black Powder Coat Finish, Non-Fire Rated Information

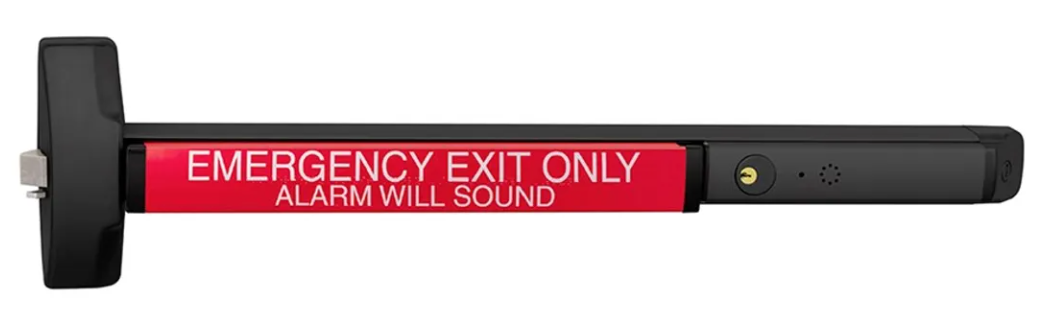

Yale 6100-A-ALR Rim Exit Device w/ Sounding Alarm Kit
This 6100 rim exit device to be used with single swing or pair-swing doors constructed of metal, wood or composite materials. Designed for application in high use areas, it can be combined with a variety of trims to match any desired style. This exit device comes standard with a built-in sounding alarm and the device is Black Powder Coat (BSP) finish. The touch bar on the Yale 6100 ALR series exit device comes standard with a red screen printed touch/push pad that states "Emergency Exit Only Alarm Will Sound."
Features of the Yale 6100-A-ALR series rim exit device:
- Designed for wide stile doors
- 3/4" throw deadlocking stainless steel pullman latchbolt
- Non-handed for easy installation
- Cerified ANSI/BHMA A156.3 Type 1 Grade 1 standards
- Can meet the Buy American Act. Contact MDI Supply for more details.
- Alarm Loudness: 90db @ 10 Feet
- Alarm Power Source: Battery Operated (9V battery included).
- Low battery warning is an Audible chirp.
- Device Status: A Red LED indicator will illuminuate every 30 seconds when alarm is armed.
- Tamper Resistant: Built-in safety monitor sounds alarm when tampering occurs.
Details and product specs of the Yale 6100-A-ALR series rim exit device:
Applications: | Single swing doors; Pairs of doors with removable mullions; Wide stile aluminum, metal, wood or composite door materials |
Door Thickness: | 1 3/4 standard |
Available Finishes: |
BSP - Black Powder Coat |
Rail Sizes: | 36" for 30" - 36" doors; |
Projection: | 3 1/4" (83 mm) active; 2 1/2" (63.5 mm) dogged) |
Fasteners: | Machine screws or wood door screws standard for panic; sex nuts and bolts (SNB) supplied standard for fire rated |
Power Requirement: | One 9-Volt Battery (included). |
Hubs: | 3/8" solid steel, fine-blanked and heat treated for additional strength. |
ANSI/BHMA: | Certified ANSI/BHMA A156.3 T ype 1 Grade 1 standards |
Latchbolt: | Stainless steel pullman style, 3/4" (19mm), deadlocking |
Dogging: | Cylinder Dogging - requires a mortise cylinder (cylinder is optional). |
Handed: | Non-Handed. |
Available Trim Options: |
Sold Separately |
Cylinders & Keyway: |
Sold Separately |
Factory Warranty: |
10-year Limited Warranty (on exit device only); 2-year factory warranty on Trim Levers. |
Mfg Model #: | 6100-A-ALR-36-BSP |
MDI Supply Item #: | YALE-6100-A-ALR-36-BSP |
Packaged & Sold: | Individually |
Yale 6100-A-ALR Rim Exit Device w/ Sounding Alarm Kit
This 6100 rim exit device to be used with single swing or pair-swing doors constructed of metal, wood or composite materials. Designed for application in high use areas, it can be combined with a variety of trims to match any desired style.
This exit device comes standard with a built-in sounding alarm and the device is Black Powder Coat (BSP) finish. The touch bar comes standard on this model with a screen printed push pad that states "Emergency Exit Only Alarm Will Sound."
Electrified Info for the Yale 6100-A-ALR Sounding Alarm Exit Device:
Activation: Alarm is armed by turning key clockwise. Low audible chirp indicates alarm has been activated. Alarm will sound when the exit device pushpad is depressed. Factory preset for standard alarm mode which automatically resets after 5 minutes.
Continuous Alarm Mode: Alarm sounds continuous when the exit device pushpad is depressed. Alarm must be manually reset by keyswitch. (This feature is selected by a switch on the circuit board.)
Low Battery Warning: Audible chirp.
Nuisance Alarm: Factory preset for instant alarm. Selectable feature for alarm to sound when pushpad is depressed for more than 2 seconds. (This feature is selected by a switch on the circuit board.)
Arming Delay/Authorized Egress: 10-second delay (after arming) permitting egress (by turning key clockwise).
Power Requirements: One 9-Volt Battery (included).
Loudness: 90db @ 10 feet.
Arm/Disarm: Uses one 1-1/8" straight cam mortise cylinder. Clockwise turn arms the alarm, counter clockwise turn disarms or silences the alarm.
Device Status: A Red LED indicator will illuminate every 30 seconds when the alarm is armed.
Tamper Resistant: Built-in safety monitor sounds alarm when tampering occurs.
Warning: “A-ALR†supplied with “EMERGENCY EXIT - ALARM WILL SOUND†with red screenprinted pushpad.
Kit: Available in kit form for field retrofit. Contact MDI supply via phone, email or chat for more information.
Bar Length: Standard 36" device fits doors 35"-36" Device cannot be cut less than 35". A-ALR option only available in 36" length.
