Accentra (formerly Yale) Rim Exit Device 6100 series x US32D-Satin Stainless Steel Finish
Accentra (formerly Yale) Rim Exit Device 6100 series x US32D-Satin Stainless Steel Finish
SKU: SKU:YALE-6100-36-32D
Product Options:
Share
Accentra (formerly Yale) Rim Exit Device 6100 series x US32D-Satin Stainless Steel Finish Information

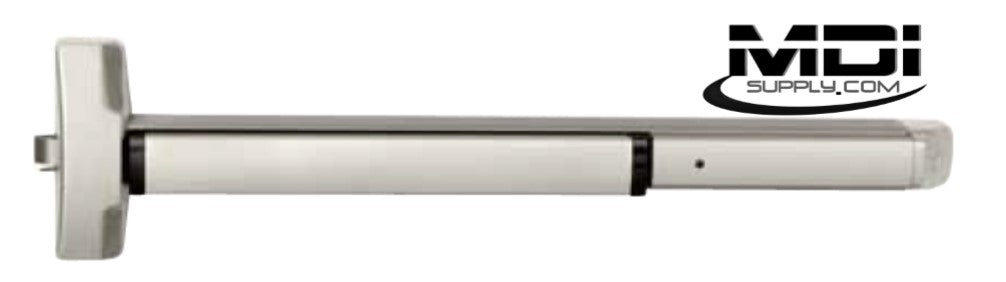

Accentra (formerly Yale) 6100 Rim Exit Device
The 6100(F) is a rim exit device to be used with single doors or pairs of doors constructed of metal, wood or composite materials. Designed for application in high use areas, the 6100(F) comes in a variety of finishes and can be combined with a variety of trims (sold seeparately) to match any desired style.
Features of the Yale 6100 series rim exit device:
- Designed for wide stile doors
- 3/4" throw deadlocking stainless steel pullman latchbolt
- Non-handed for easy installation
- UL Rated for Panic & Fire Rated (FEH-Fire Exit Hardware) - 6100/6100F
- Cerified ANSI/BHMA A156.3 Type 1 Grade 1 standards
- Can meet the Buy American Act. Contact MDI Supply for more details.
- If you're looking for a Yale rim exit device with a sounding alarm kit, click here for the Yale 6100-A-ALR 36-inch.
Details and product specs of the Yale 6100 series rim exit device:
Applications: | Single swing doors; Pairs of doors with removable mullions; Wide stile aluminum, metal, wood or composite door materials |
Door Thickness: | 1 3/4 standard |
Available Finishes: |
US32D/630 - Satin Stainless Steel |
Rail Sizes: | 36" for 30" - 36" doors; 48" for 42" - 48" doors |
Projection: | 3 1/4" (83 mm) active; 2 1/2" (63.5 mm) dogged) |
Fasteners: | Machine screws or wood door screws standard for panic; sex nuts and bolts (SNB) supplied standard for fire rated |
UL Listed: | Yes, for use on labeled fire doors - Fire Exit Hardware (model 6100F) |
Hubs: | 3/8" solid steel, fine-blanked and heat treated for additional strength. |
ANSI/BHMA: | Certified ANSI/BHMA A156.3 T ype 1 Grade 1 standards |
Latchbolt: | Stainless steel pullman style, 3/4" (19mm), deadlocking |
Dogging: | Hex key dogging standard on panic; Not available on fire rated (FEH) |
Handed: | Non-Handed. |
Available Trim Options: |
Sold Sepsarately |
Cylinders & Keyway: |
Sold Sepsarately |
Factory Warranty: |
10-year Limited Warranty (on exit device only); |
Mfg Model #: | 6100 |
MDI Supply Item #: | Yale-6100-__-32D |
Packaged & Sold: | Individually |
Yale 6100 Rim Exit Device
The 6100(F) is a rim exit device to be used with single doors or pairs of doors constructed of metal, wood or composite materials. Designed for application in high use areas, the 6100(F) comes in a variety of finishes and can be combined with a variety of trims to match any desired style.
Catalog/Brochure: | Click here to download a the catalog/brochure on the Yale 6000 exit device. |
Trim Options: | Click here to download a cut sheet on the Yale 6000 exit device trim options. |
Finish Options: | Click here to download the Finish options page on the Yale 6000 exit device. |
MDI Supply Item #: | Yale-6100-32D |
