Yale 5801 Door Closer - Cast Iron

Yale 5801 Door Closer - Cast Iron

SKU: SKU:YALE-5801-689

Availability : Usually ships the next business day

Regular price $139.00
Regular price $417.00 Sale price $139.00
Sale Sold out
Shipping calculated at checkout.

Product Options:

Model: 580Tri-Packed Closer-Standard
View full details

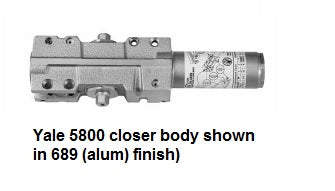

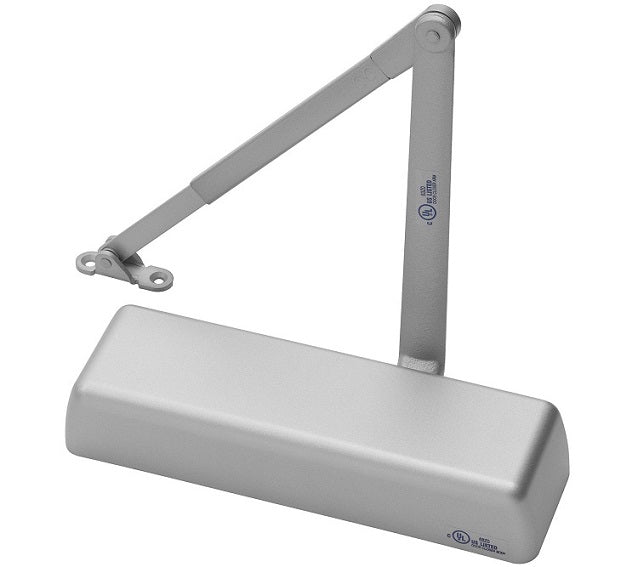

Yale 5801 Cast Iron Door Closer
Yale® 5800 series cast iron door closers are ideal for commercial applications where ease of use and installation are required at an economical price. The 5800 series features rugged construction, adjustments for back-check, closing and latch speed, rack and pinion operation and a variety of arm options.

Details and product specs of the Yale 5800 Series Grade 1 heavy duty door closer:

Warranty: Factory 10-Year Warranty.
Features: Adjustable spring sizes 1-6 (standard)
Non-handed (standard)
Cast iron heavy duty body (standard)
Tri-packed: regular, parallel or top jamb mounting (standard)
Full plastic cover (standard)
Spring power adjustment (standard)
Sleeve nuts included with each closer (standard)
Non-hold open (standard)
Hold-open (optional - see other closer models)...please note that hold-open closers are not permitted to be used on fire door assemblies.
Standard Functions: Backcheck
Closer speed
Latching speed
Available Finishes &
UPC Codes
IN STOCK & TYPICALLY SHIPS WITHIN 24 HOURS
689 - Aluminum Painted / UPC:  049306150323

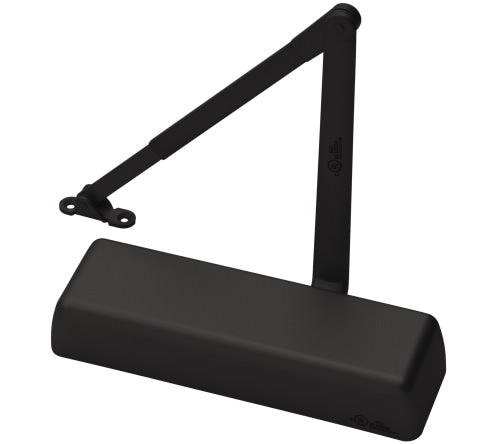

690 - Dark Bronze Painted / UPC:  049306150330
Certifications: Certified for ANSI/BHMA A156.4 Grade 1.UL and cUL listed.  This includes compliance to UL10C. Meets requirements for Americans with Disabilities Act (ADA) and ANSI/BHMA A117.1.
Models Available: Yale 5800 Series Door Closer Models:
5801: Non-Hold Open Tri-Packed
5821: Heavy Duty Non-Hold Open Parallel Arm with Removable Stop*
5811: Hold Open Tri-Packed
5821T: Heavy Duty Hold Open Parallel Arm with Thumbturn & Removable* Stop
*  Note: For heavy duty parallel rigid arm applications, specify 5821 or 5821T, the stop is removable if it's not needed.
Mfg Model #: 5801
MDI Supply Item #: Yale-YFS-5801
Packaged & Sold: Individually
   Yale Logo



Yale 5801 Cast Iron Door Closer
Yale® 5800 series cast iron door closers are ideal for commercial applications where ease of use and installation are required at an economical price. The 5800 series features rugged construction, adjustments for back-check, closing and latch speed, rack and pinion operation and a variety of arm options.

Click here for a cut sheet on the Yale 5800 series heavy duty door closer.
