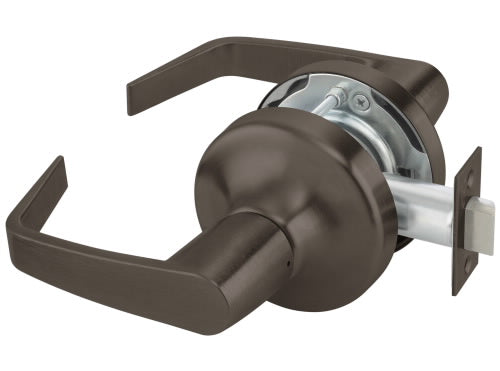

Yale 4701LN Passage Cylindrical Lever Set, Grade 1

Yale 4701LN Grade 1 Heavy Duty Passage Lever
The Yale 4700LN Series grade 1 cylindrical lever locks are the ideal choice for a wide variety of commercial applications where consistent quality, ease of use and installation are required at an economical price.  The 4700LN Series is certified to ANSI/BHMA Grade 1 standards and is UL fire listed for all functions and ensuring reliability and peace of mind.

Features (some features by special order only):
- Available in 19 functions. 2 lever designs and 8 finishes
- Knurled levers designs available.
- Freewheeling trim
- Available with Microshield antimicrobial coating

Details and product specs of the Yale 4700LN Grade 1 Cylindrical Lockset

Warranty:	Factory 5-Year Warranty.  Consult office for more details.
Door Thickness:	1 3/4 standard
Available Finishes: Some finishes are stock and some are by special order only.  Call for special order quote	IN STOCK - Typically ships in 24 hours US26D/626 (satin chrome) - stock US10BE/613E (dark oxidized satin bronze equal) - stock SPECIAL ORDER...1-3 Weeks Production US3/605 (polished/bright brass) US4/606 (satin brass, clear coated) US10/612 (satin bronze, clear coated) US26/625 (polished/bright chrome plated) BY SPECIAL PROJECT REQUEST (WRITTEN)...+/- 5 Weeks Production US10B/613 (dark oxidized satin bronze, oil rubbed) 722 (black oxidized bronze, oil rubbed)
Stock Functions Available:	Non-Keyed:  Passage: 4701LN;  Privacy: 4702LN Keyed:  Storeroom: 4705LN;  Entry: 4707LN;  Classoom: 4708LN
UL Listed	Yes, for application on labeled fire doors.
ANDI/BHMA:	Certified ANSI/BHMA A156.2, Series 4000 Grade 1
Applications & Listings:	UL – cUL listed for use on fire doors having a rating up to & includ. 3 hrs. Windstorm certified refer to local codes. Meets accessibility guidelines for the Americans with Disabilities Act and the requirements of the Uniform Federal Accessibility Standards and ANSI 117.1
Backset:	2 3/4" only
Handed:	Non-handed
Lever Trim Designs:	AU - Augusta MO - Monroe PB - Pacific Beach
Cylinder/Keyway Options: (Keyed locksets only)	Yale 6-pin Para keyway - keyed random Schlage 6-pin C-keyway - Keyed random SFIC Prep - Less Core (Small Format Interchangeable Core by others)  Yale 6-pin Para keyway MK - master-keyed (locks are keyed random and a master-key is supplied)
Keys & Strike Plate:	Keyed locksets: shipped with 2-keys per lock. Strike plate: (1) ANSI 4-7/8" x 1-1/4" x 1-1/4" shipped with each lever set
Mfg Model #:	4701LN
MDI Supply Item #:	Yale-YFS-4701LN
Packaged & Sold:	Individually

Yale 4701LN Grade 1 Heavy Duty Passage Lever
The Yale 4700LN Series grade 1 cylindrical lever locks are the ideal choice for a wide variety of commerical applications where consistent quality, ease of use and installation are required at an economical price. The 4700LN Series is certified to ANSI/BHMA Grade 1 standards and is UL fire listed for all functions and ensuring relioability and peace of mind.

Click here for a cut sheet on the Yale 4700LN Grade 1 Cylindrical Lever.
