Existing Masonry Wall Anchor Reinforcement Part - EMA, A40 Galv Steel

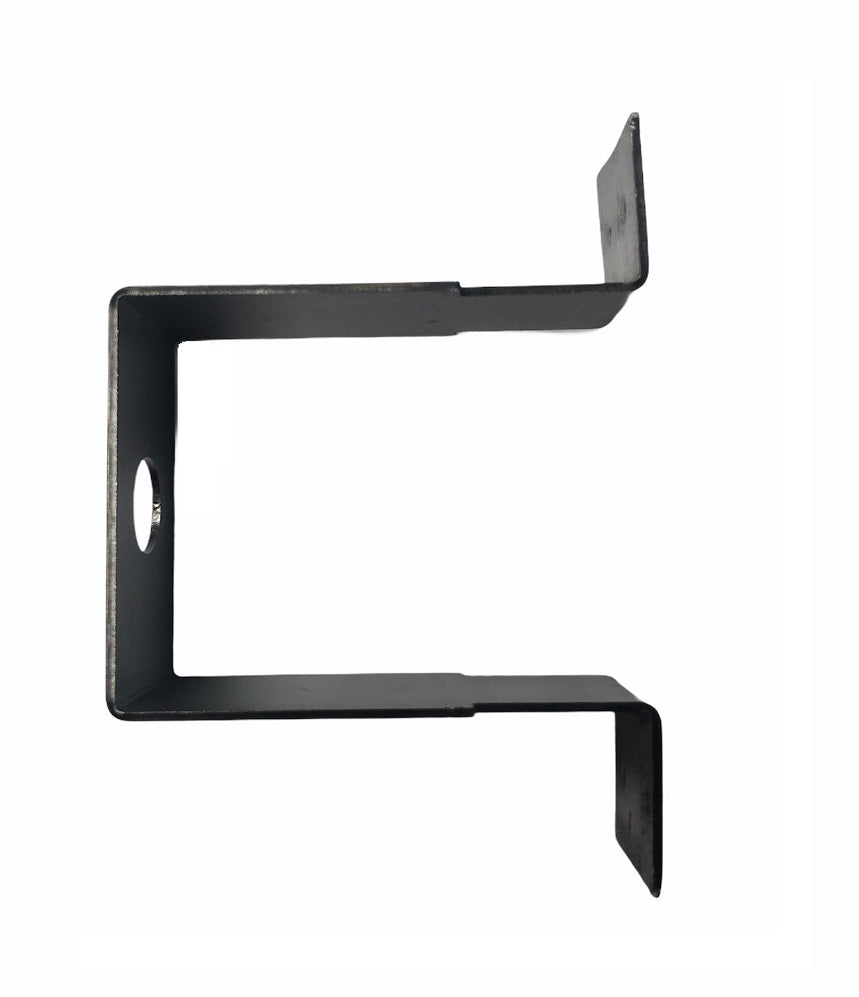

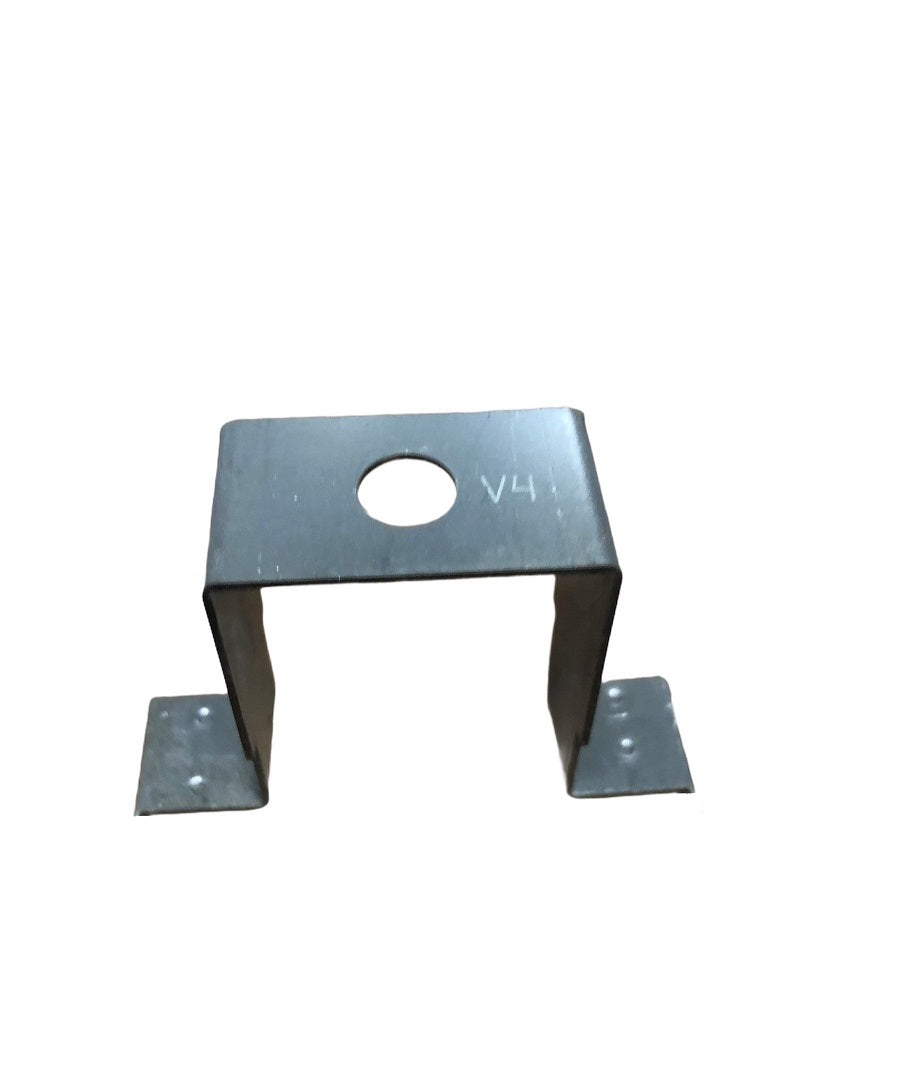

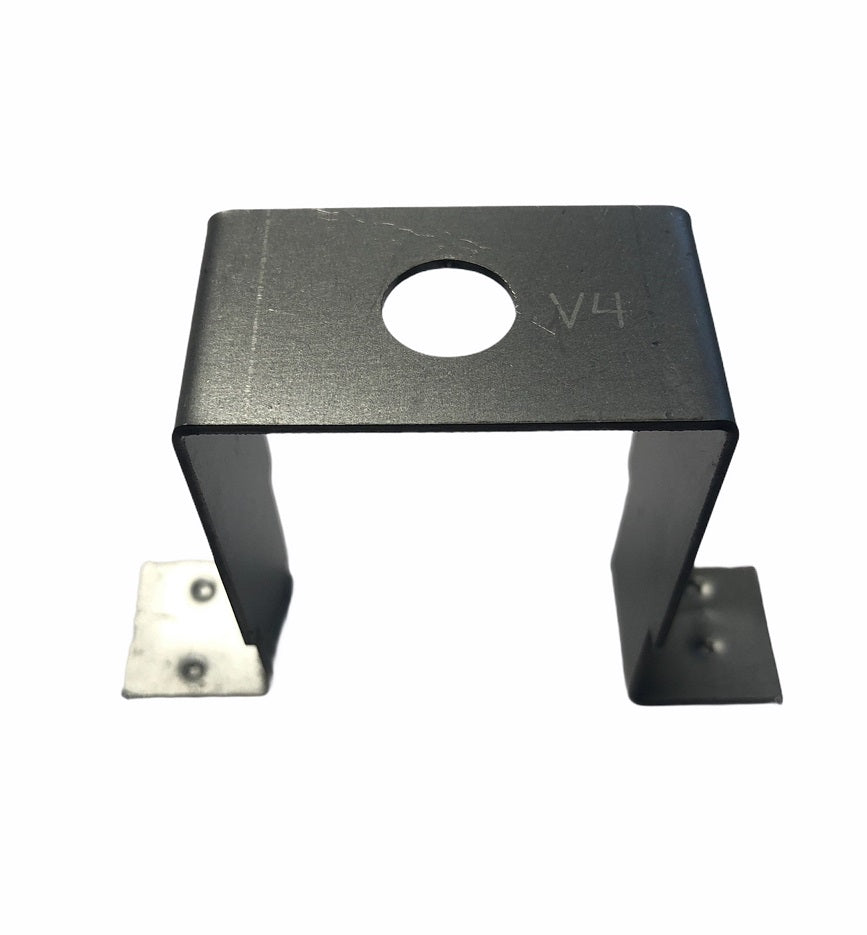

EXISTING MASONRY WALL ANCHOR - EMA WALL ANCHOR
For use in HM frames for installation as a butted install against an existing masonry walls.

WALL ANCHOR DETAILS:

»  For use w/ HM (hollow metal) steel frames.  Frames sold separately.  Expansion Bolts solid separately.

»  A40 galv. steel reinforcement bracket.
»  EMA - Existing Masonry Anchor used for a butted application against masonry walls.

»  Typically used with a 3/8" expansion bolt sleeve anchor.
»  Height: 2.5";
»  Width: 3.625" end of tab to end of tab.

INSTALLATION METHOD:

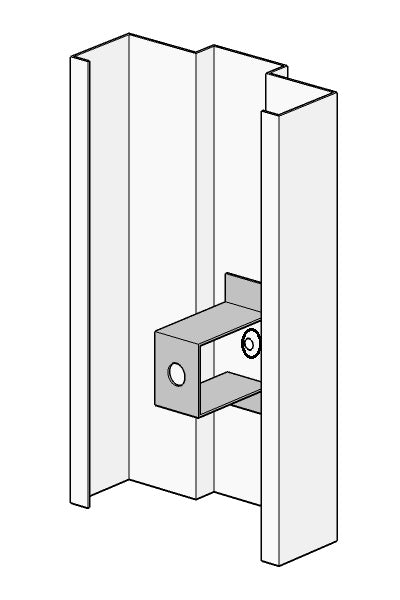

» 1.  Install into throat of HM frame by welding process by a licensed welder.

» 2.  All welds must be touched-up with commercial quality primer.

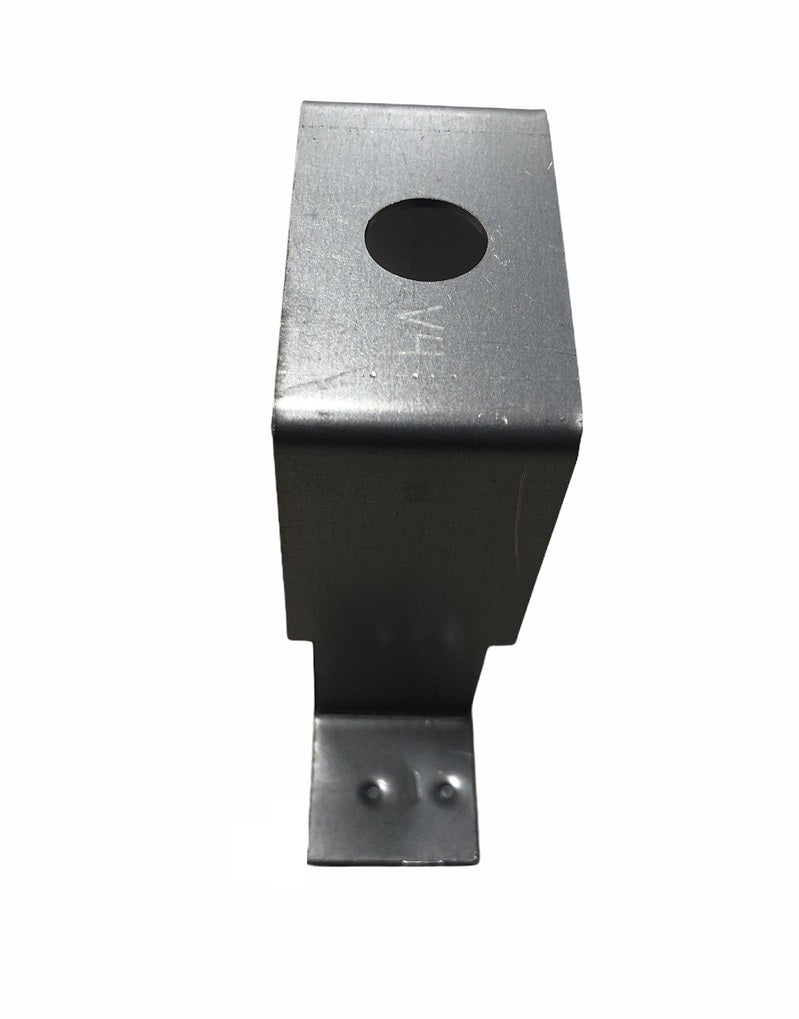

» 3.  The EMA anchor bracket come standard with pultrusion dimples for spot welding.

* Please note:

»  This wall anchor is a reinforcement bracket that requires a "punch-out" or a "punch & dimple" prep through the stop of the frame for the expansion bolt (sleeve anchor) to go through.  Diagram and images are for illustration purpose only and actual product may vary, but application, function and installation will remain same.
