Trans Atlantic ED-501 Rim Exit Device
The ED501 series “rim type” exit device is suitable for all doors (aluminum, hollow metal, or wood) where there is no projection on the face. It is appropriate for all heavy duty commercial and industrial applications. For use on doors up to 36".
Specifications of the ED-501 Exit Device:
• ANSI A156.3 Grade 1
• ED-501: Non-fire Rated
• ED-F501: Fire Rated: UL10C Fire rated; barrier Accessories
• Non-handed
• For optional trim images and descriptions, please click the "blue circle check" to the right of the option for more information.
• EAK500: Alarm kit Optional. Contact MDI.
• Door width: up to 36"
• Available in XL for up to 48"

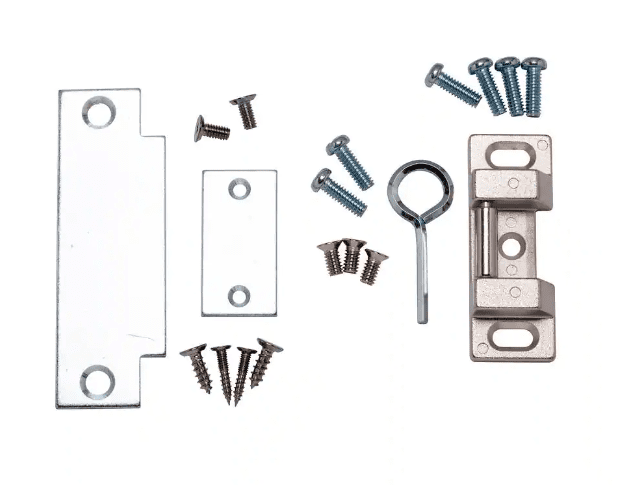

• Comes with standard screw pack (strike, blanks, screws & dogging key*).
• Comes standard with a plastic end cap.
• Dogging standard ONLY on non-UL fire rated
• Projection: 2 1/4"
• Door Thickness: 1 3/4" up to 2".
• Minimum Stile: 3"
• Warranty: 1-year Factory Warranty
• Can be cut down to 26" in length.
• Finishes: AL-Aluminum is in stock. DU-Duronodic and US32D-Satin Stainless Steel are special order. Contact MDI for quote and lead-time.
• MDI Supply #: TA-ED-501-AL / TA-ED-501-AL
• Manufacturer Model #: ED-501-AL / ED-F501-AL
• Packaged and Sold: Indvidually
* Dogging key supplied with non-fire rated devices only.
