Bradley # 5425 Toilet Tissue Dispenser, Surface-Mtd., Double Jumbo Roll, 9"

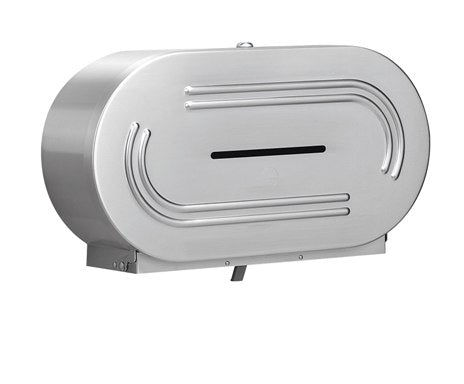

Bradley # 5425 Surface Mounted Toilet Tissue Dispenser

Click here for Bradley # 5425 tech data sheet

»  Satin finish Stainless Steel

»  Surface Mounted

Bradley # 5425 Toilet Tissue Dispenser Product Details:

CABINET & MOUNTING PLATE:

18 gauge satin finish stainless steel.

DOOR:

18 gauge satin finish stainless steel. Drawn one-piece construction.  Furnished with tumbler lock and refill-indicator viewing slots.

DISPENSING MECHANISM:

Chemical-and flame-retardant ABS.

Operation:

Cabinet holds two 9" diameter rolls of 3" or 2-1/4" diameter core toilet tissue (by using core adapters). When first roll is depleted, the bottom access panel level is slid to the other side, revealing the second roll. Refill indicator slot reveals tissue level. Tumbler-locked door swings down to replenish tissue rolls.

Installation:

» Verify all rough-in dimensions prior to installation.

» Secure unit to wall or toilet partition with five screws (included) through mounting holes.

Guide Specification:

Jumbo roll toilet tissue dispenser shall be 18-gauge satin finish stainless steel. Dispensing mechanism shall be flame and chemical retardant ABS plastic. Unit shall dispense two 9" diameter toilet tissue rolls with 3" or 2-1/4" diameter core. Unit shall have a sliding access panel to allow dispensing from one roll at a time. Door shall be secured with a tumbler lock and shall have a refill indicator viewing slot.

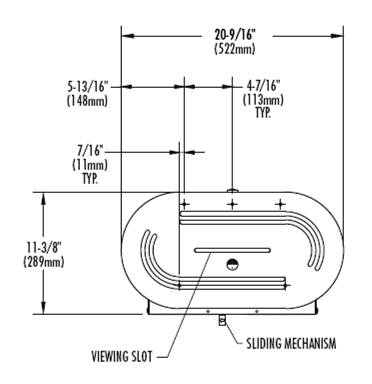

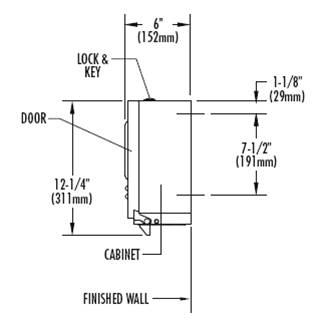

Overall dimensions:  20 9/16"W x 11 3/8"H x 6"D.
