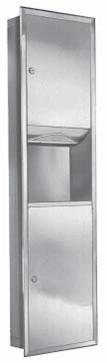

Bradley # 235 Towel Dispenser/Waste Receptacle - Recessed, 4.2 Gallon Capacity

Bradley # 235 Recessed Towel Dispenser/Waste Receptacle Combo Unit

Click here for Bradley # 235 tech data sheet

Click here for Installation Instructions for the Bradley # 235 Recessed Towel Dispenser/Waste Receptacle Combo Unit

Product Details:

CABINET:

22 gauge stainless steel with exposed surfaces in architectural satin finish. Welded construction with seamless corners and burr-free edges.

FLANGE:

22 gauge stainless steel with exposed surfaces in architectural satin finish. One piece seamless construction, 1" wide with 1/4" return.

DOORS:

18 gauge stainless steel. Warp resistant, with full length piano hinge and tumbler lock keyed like other Bradley units.

TOWEL DISPENSER:

22 gauge stainless steel. Rolled edge on dispenser opening.

WASTE CONTAINER INSERT:

Leak-proof molded plastic.

Capacity:

Towel Dispenser — 800 multi-fold or 500 C-fold paper towels

Waste Receptacle Insert — 4.9 gal. (0.65 cu. ft.)

Cup Dispenser (optional) — 100 - 3 oz. cups

Operation:

Towel dispenser holds multi-fold or C-fold towels without use of special adaptor. Waste receptacle insert removable for easy servicing by unlocking waste container.

Installation:

»  Verify all rough-in dimensions prior to installation.

»  Recessed unit requires rough wall opening 15-3/4"W x 54-5/8"H x 4"D (Semi-recessed unit only 2" deep).

»  Secure to framing with mounting screws (included) at holes provided.

»  Shim at screw points as required.

Guide Specification:

Recessed combination towel dispenser and waste receptacle shall be fabricated of 22 gauge stain less steel with ex posed surfaces in sat in finish. Cabinet doors of warp-free construction, equipped with full length piano hinge and secured by tumbler lock. Towel dispenser capacity 800 multi-fold or 500 C-fold towels.  Removable 4.9 gal. leak-proof molded plastic insert for waste receptacle.

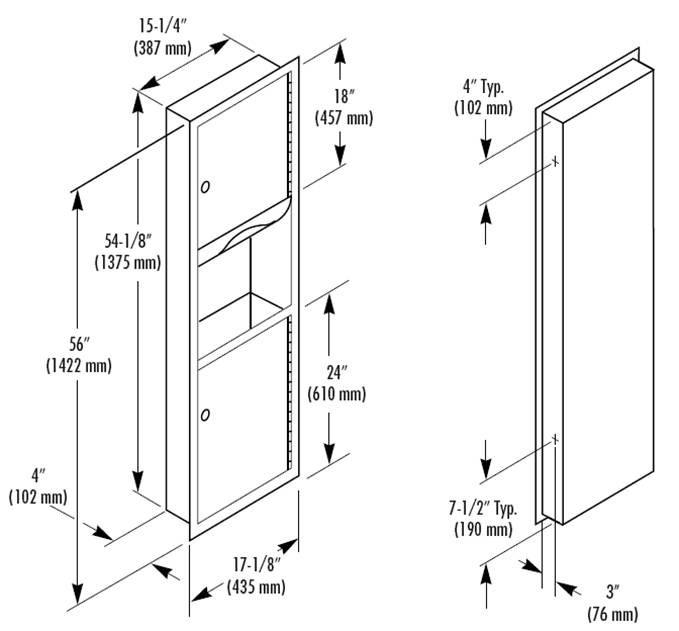

Overall dimensions: 17-1/8"W x 56"H x 4"D.
