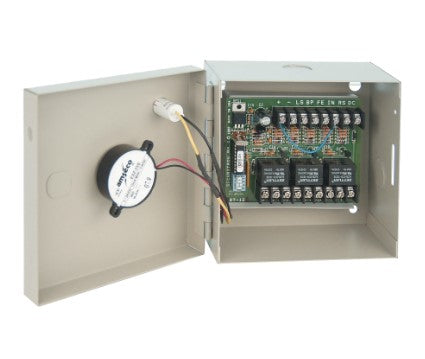

Securitron DPA Door Prop Alarm

Securitron DPA Door Prop Alarm

The DPA complements door position/door state detection with timed logic and relays that provide escalating alerts when a door is held, propped or unsecure after a defined time period.

This unit promotes safety and loss prevention at anchillary exists for healthcare, commercial and retail facilities.

Standard Features of the Securitron DPA Door Prop Alarm:

• Multi-functional control timer provides relay action for alarms and alerts
• Monitors whether a door remains (or propped) open after a defined time frame

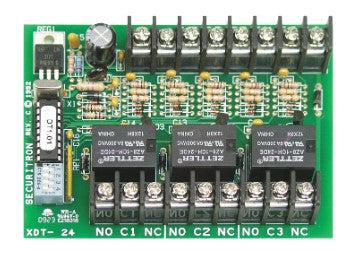

• Includes three SPDT outputs providing local and remote signaling
• Digital time settings from 30 to 240 seconds
• Detects attempts to tamper with lock or door status
• Multiple time ranges for escalating alerts
• Bypass mode for valid access/egress needs
• Comes with Piezo sounder and LED
• Factory MagnaCare® lifetime replacement warranty

Specifications of the Securitron DPA:

Electrical Specs:

• Max draw 100 mA at 12 VDC
• Max draw 50 mA at 24 VDC
• 5 A SPDT Relays Environmental
• Operating Temperature: 32˚ to 120˚ F [0˚ to 49˚ C]
