Rockwood BF158BTB Back-to-Back Mount, 12" CTC, 90-Degree Offset Pull Set
Rockwood BF158BTB Back-to-Back Mount, 12" CTC, 90-Degree Offset Pull Set
SKU: SKU:RKWD-BF158BTB
Product Options:
Couldn't load pickup availability
Rockwood BF158BTB Back-to-Back Mount, 12" CTC, 90-Degree Offset Pull Set Information
Rockwood BF158BTB Offset Pull Handle - 12" CTC Back-to-Back Mounting
The Rockwood BF158BTB offset pull handle has a 90-degree offset with an 12" center-to-center (CTC) location, 1" diameter handle and projects off the door 3 1/2". This pull handle meets ANSI A156.6 Standards.

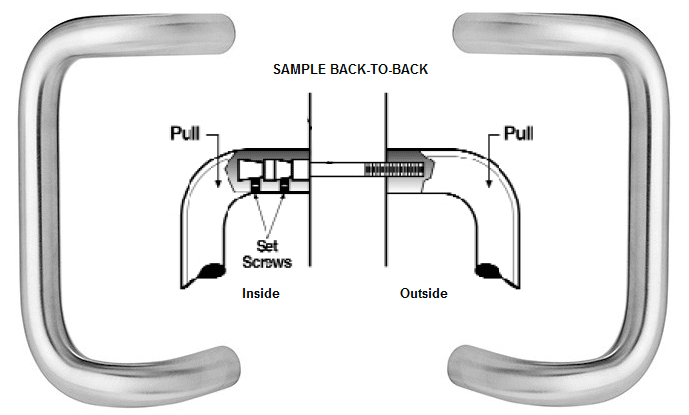

The BF158BTB is a concealed mount offset pull set. It is recommended for ADA openings. Supplied standard for 1-3/4" doors, it can also be ordered as a back-to-back set for solid glass doors.
Details and product specs of the Rockwood BF156BTB Offset Pull Handle:
| Door Thickness Required: | Type 16 Mounting: 1 3/4" thick door wood or steel door Type 18 Mounting: 1/2" thick glass door. |
| Material: | Aluminum, Brass, Bronze, Stainless Steel |
| Fastener: |
Back-to-Back Mounting with: |
| Handle Diameter: | 1" Diameter |

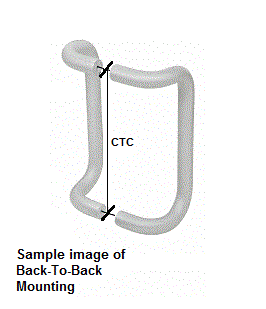

| CTC (Center-To-Center): | 12" CTC |
| Overall: | 13" |
| Base: | 1" |
| Projection: | 3 1/2" |
| Clearance: | 2 1/2" |
| ANSI A156.6 | J402 |
| Handed: | No |
| Finishes Available: | 628 - Aluminum - Ships in 3-4 working days 630 - Satin Stainless Steel - ships in 3-4 working days US10BE - Dark Oxidized Satin Bronze Equal - ships in 2-weeks |
| Mfg Model #: | BF158BTB |
| MDI Supply Item #: | RKWD-BF158BTB |
| Packaged & Sold: | Individually (set) |
This product is special order and cannot be canceled, returned or exchanged.
