Rockwood LT-B1 Vision Lite Kit Complete Pack - Includes Vision Kit, 3/16" Thick Fire/Safety Rated Ceramic Glass & Glazing Tape, 90 Min Rated

Rockwood LT-B1 Vision Lite Kit Complete Pack - Includes Vision Kit, 3/16" Thick Fire/Safety Rated Ceramic Glass & Glazing Tape, 90 Min Rated

SKU: SKU:RKWD-LT-B1-PPF-1212-DG

Availability : Usually Ships in 3-5 Business Days

Regular price $215.00
Regular price Sale price $215.00
Sale Sold out
Shipping calculated at checkout.

Product Options:

Each Complete Pack Includes: (1) LT-B1 Vision Kit, (1) Ceramic Glass, (1) Set Glazing Tape, & Fasteners
Glass: 3/16″ Clear PYRAN Platinum F Fire/Safety Rated Glass, 90-Minute Rated
Door Thickness: For use with 1 3/4" thick doors only
Images: Images at left may not represent the exact product. Images are not to scale.
View full details

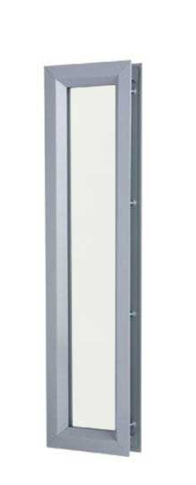

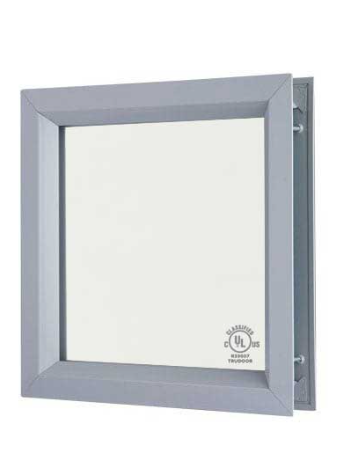

Rockwood Complete Pack LT-B1 Vision Lite Kit x Galv Steel, with 3/16" Thick Pyran Platinum F Fire/Safety Glass, Glazing Tape, For use on 1 3/4" Thick Doors

The LT-B1 (3/8" glazing pocket), Low Profile Beveled Lite Kits are for use with glazing material with wood or metal doors and feature a wide viewing angle as well as a hemmed design that is ideal for clean environments.  Combined into the Complete Pack - this package is ready to install right out of the box.

The Complete Pack Includes:

  • (1) Rockwood LT-B1 Galv Steel Vision Kit
  • (1) Schott Pyran Platinum F Premium 90 min Fire/Safety Rated Ceramic Glass
  • (1) Pemko Fire Glazing Tape Set
  • Fasteners

Features of the Rockwood LT-B1 Vision Lite Complete Pack:

  • Base Material: Galvannealed steel
  • Fasteners: #8 X 1 3/4" OH SMS (included)
  • Size:
    • Viewable Glass Size = Order Size Minus 2"
    • Glass Size = Order Size Minus 1"
    • Door Cut Out Size is the Order Size
  • Door Type (for use with): Wood, Metal
  • Door Thickness: For use with 1 3/4" thick doors only

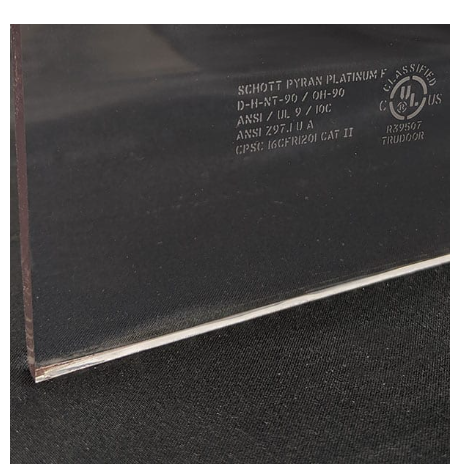

  • Glass: Premium 3/16" thick Pyran Platinum F Fire/Safety Rated Ceramic Glass is Included.  This glass is clear (transparent) and wireless/wire-free.  There is no amber tint on this glass.
  • Glazing Tape: Pemko Fire Glazing Tape Included with every Complete Pack
  • UL Label: Glass is permanently etched with UL Classification. Each frame is embossed with the UL Label - 90 in fire rated.

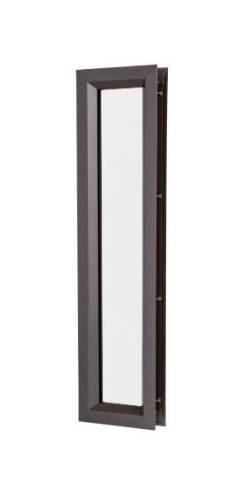

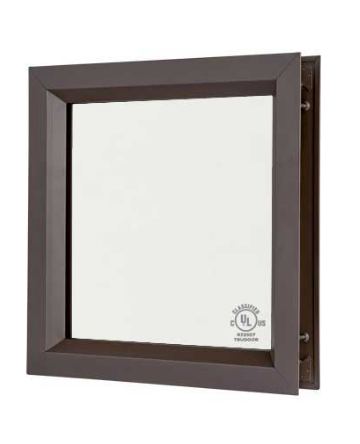

  • Standard Finish: DG-Dark Gray Primer or DKB-Dark Bronze (Dark Brown)
  • Optional Finishes: Other finishes are available by special order (Beige, Black, White, Red, and more.  Please contact MDI for a special price quote.
  • 90 Min Fire rated
  • Made in the USA.

Vision Kit Certifications:

  • Classified in accordance with UBC code standard 7-2 for positive pressure
  • UL Listed for use on fire doors.

Glass Certifications:

  • Classified and labeled by Underwriters Laboratories, Inc.® and Underwriters Laboratories of Canada. Test report number for labeled fire-rated assemblies is UL File No. R22036.
  • Tested in accordance with UL 9, UL 10B, UL 10C, UBC 7-2 (1997), UBC 7-4 (1997), NFPA 257, NFPA 80, ASTM E2010-01, ASTM E2074-00, ULCCAN4 S-104 and ULCCAN4 S-106.
  • UL Listed for use on fire doors - up to 90 min rated.
  • Building Code Marking: D-H-NT-90 (for Non-Temp Rise Applications).
  • Glass Safety Impact Rating: ANSI Z97.1 and CPSC 16CFR1201 CAT II
