Rockwood LT-B1 Vision Lite Kit Complete Pack - Includes Vision Kit, 1/4" Thick Clear Tempered Glass & Glazing Tape for use on Non-Fire Rated 1 3/4" Thick Doors

Rockwood LT-B1 Vision Lite Kit Complete Pack - Includes Vision Kit, 1/4" Thick Clear Tempered Glass & Glazing Tape for use on Non-Fire Rated 1 3/4" Thick Doors

Rockwood Manufacturing

SKU: RKWD-LT-B1-CTG-1212-DG

Availability : Usually Ships in 3-5 Business Days

$145.00
$145.00
Sale Sold out
Shipping calculated at checkout.

Product Options:
Each Complete Pack Includes: (1) LT-B1 Vision Kit, (1) Clear Tempered Glass, (1) Set Glazing Tape, & Fasteners
Glass: 1/4" Thick Clear Tempered Glass, Non-Fire Rated
Door Thickness: For use with 1 3/4" thick doors only
Images: Images at left may not represent the exact product. Images are not to scale.

Click here for a Cut Sheet on the Rockwood LT-B1 Vision Lite

View full details

Rockwood LT-B1 Vision Lite Kit Complete Pack - Includes Vision Kit, 1/4" Thick Clear Tempered Glass & Glazing Tape for use on Non-Fire Rated 1 3/4" Thick Doors Information

Rockwood Complete Pack LT-B1 Vision Lite Kit x Galv Steel, with 1/4" Thick Clear Tempered Glass, Glazing Tape, For use on 1 3/4" Thick Doors

The LT-B1 (3/8" glazing pocket), Low Profile Beveled Lite Kits are for use with glazing material with wood or metal doors and feature a wide viewing angle as well as a hemmed design that is ideal for clean environments.  Combined into the Complete Pack - this package is ready to install right out of the box.

The Complete Pack Includes:

  • (1) Rockwood LT-B1 Galv Steel Vision Kit
  • (1) 1/4" Clear Tempered CAT II Safety & Impact Rated Glass/Glazing (when broken will break into tiny pieces)
  • (1) Pemko Glazing Tape
  • Fasteners

Features of the Rockwood LT-B1 Vision Lite Complete Pack:

  • Base Material: Galvannealed steel
  • Fasteners: #8 X 1 3/4" OH SMS (included)

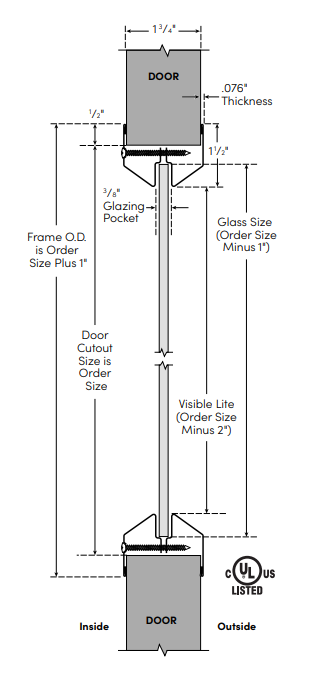

  • Size:
    • Viewable Glass Size = Order Size Minus 2"
    • Glass Size = Order Size Minus 1"
    • Door Cut Out Size is the Order Size
  • Door Type (for use with): Wood, Metal
  • Door Thickness: For use with 1 3/4" thick doors only
  • Glass: 1/4" thick Clear Tempered Glass is Included.  This glass is clear (transparent) and wireless/wire-free.  There is no amber tint on this glass.  It is CAT II Safety & Impact Rated.
  • Glazing Tape: Pemko Glazing Tape Included with every Complete Pack
  • Standard Finish: DG-Dark Gray Primer or DKB-Dark Bronze (Dark Brown)
  • Optional Finishes: Other finishes are available by special order (Beige, Black, White, Red, and more.  Please contact MDI for a special price quote.
  • For use on non-fire rated 1 3/4" thick doors.
  • Made in the USA.

Glass Certifications:

  • Glass Safety Impact Rating: ANSI Z97.1 and CPSC 16CFR1201 CAT II

Availability:

  • Usually Ships in 3-5 Business Days
