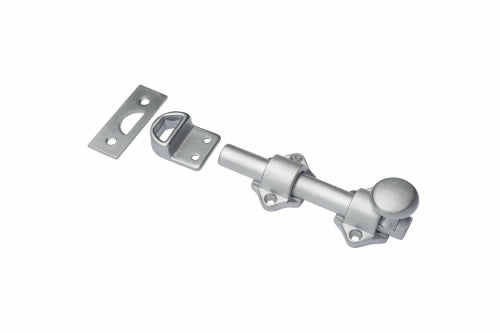

Rockwood 630-4 Dutch Door Bolt, 4-inch Length, US26D-Satin Chrome

Rockwood 630-4 Surface Applied Dutch Door Bolt 4"
The 630 series surface bolt by Rockwood can be used as a typical surface bolt or more commonly found to be used as a Duthch Door Bolt to connect the top and bottom doors of a Dutch Door.

Details and product specs of the Rockwood 630-4 Dutch Door Bolt

Material:	Solid Brass
Slide Resistance:	Unique fiber gasket provides slide resistance without marring surface of bolt
Knob Diameter:	1" Diameter Knob
Strike:	Supplied with universal and mortise strike
Finish Available:	US26D - Satin Chrome FInish
Available Sizes:	4" (Other lengths are available by special order)
Fasteners:	8 ea. #6 x 3/4" Oval Head Sheet Metal Screws
Mfg Model #:	630-4
MDI Supply Item #:	RKWD-634-4-US26D
Packaged & Sold:	Individually

Rockwood 630-4 - 4" Surface Applied Bolt
The 630 series surface bolt by Rockwood can be used as a typical surface bolt or more commonly found to be used as a Duthch Door Bolt to connect the top and bottom doors of a Dutch Door.

Downloads for teh Rockwood 630-4 Dutch Door Bolt:

Cut SHeet:	Click here for a cut sheet for the Rockwood 630-4 Dutch Door Bolt
