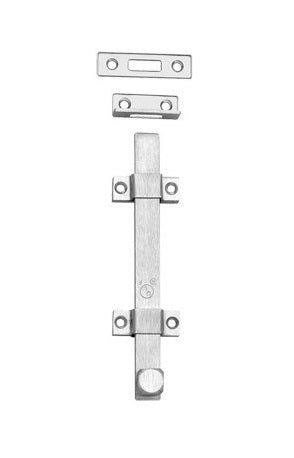

Rockwood 580-8 Surface Bolt, 8-inches

ROCKWOOD # 580 SURFACE BOLT

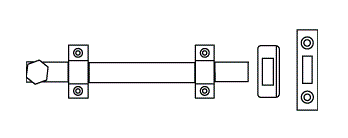

Click here for the Rockwood 580 surface bolt template

SPECS/ DETAILS:
»  Material: Steel, Stainless Steel (finish dependant)
»  Fastener: 8 ea. #10 x 1-1/4 FH SMS, 8 ea. 10-24 x 1 FH MS
»  Other: 1-1/8" bolt throw, 1/4" x 3/4" bolt material.

FEATURES:
»  UL listed for use on an inactive leaf of a pair of fire rated doors (up to 3-hour fire labeled).
»  Includes a universal top strike and a mortise bottom strike.
»  Bolt Length:  8"
»  Weight:  1.1 lbs.
»  ANSI A156.16:  L04161
