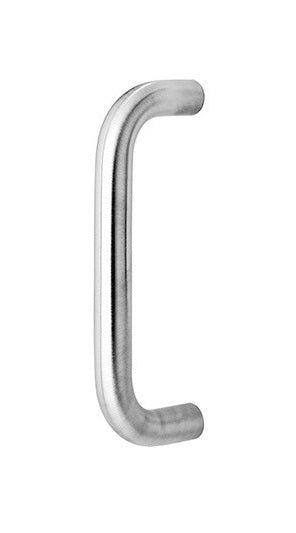

• Rockwood 107 Pull Handle, 8" Center-To-Center (CTC), 3/4" Diameter main image
1 1

Rockwood 107 Door Pull Handle, 8" Center-To-Center (CTC), 3/4" Diameter

Rockwood 107 Door Pull Handle, 8" Center-To-Center (CTC), 3/4" Diameter

Rockwood Manufacturing

SKU: RKWD-107-US32D

$35.00
$96.00 $35.00
Sale Sold out
Shipping calculated at checkout.

Product Options:
Mounting: Standard Thru-Bolt Type

Cut Sheet of the Rockwood 107 Door Pull

View full details

Rockwood 107 Door Pull Handle, 8" Center-To-Center (CTC), 3/4" Diameter Information

Rockwood 107 Pull Handle - 8" CTC
The Rockwood 107 pull is a straight pull handle with an 8" center-to-center (CTC) location, 3/4" diameter handle and projects off the door 2 5/8".  This pull handle meets ANSI A156.6 Standards.

Details and product specs of the Rockwood 107 Straight Pull Handle:

Door Thickness Required: 1 3/4" thick door
Material: Aluminum, Brass, Bronze, Stainless Steel
Fastener:

1⁄4-20 x 2-1⁄4 Thru Bolt & Finish Washer (standard 1-3⁄4" door)
This is typical thru-bolt type mounting - standard for this pull handle.
Standard Thru-Bolt Mount Ships in 3-4 business days.


OPTIONAL: BTB 1.75-inch Steel Door...Order even number quantity *
OPTIONAL: BTB Glass Door...Order even number quantity *
Optional BTB (Back to Back) Mount Ships in 1-2 Weeks.

* BTB ORDER EXAMPLE:  If you order order 4 Pulls with BTB (Back-To-Back mounting you will receive 2-sets (4-Pulls).  If you want 4-sets you need to order 8-pulls.
Handle Diameter: 3/4" Diameter
CTC (Center-To-Center): 8" CTC
Overall: 8 3/4"
Base: 3/4"
Projection: 2 5/8"
Clearance: 1 7/8"
ANSI A156.6 J401
Handed: No
Finishes Available: US28-Aluminum
US32D-Satin Stainless Steel
US32-Pol. Stainless Steel
US3-Pol. Brass
US4-Satin Brass
US10B-Dark Oil Rubbed Bronze
Mfg Model #: 107
MDI Supply Item #: RKWD-107
Sold: Individually
