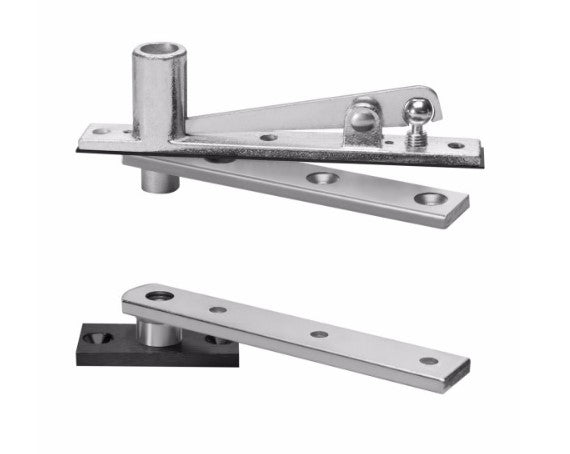

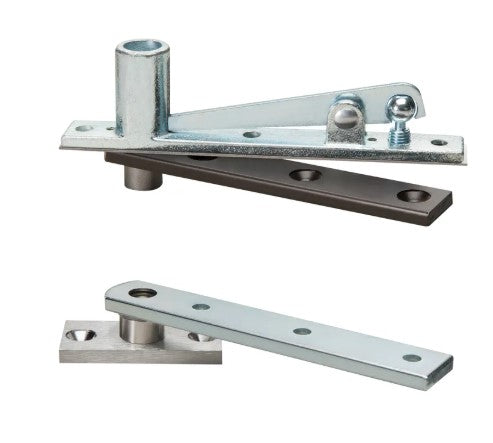

Rixson 128-3/4 Center-Hung Pivot Set

Rixson 128-3/4 Center-Hung Piviot Set
Center hung pivots are door hanging means only. To close doors you will need a floor closer. Contact MDI for your floor closer requiirement.

Description & Features of the Rixson 128-3/4 Pivot Set:
• Hang Type: Center Hung
• Application: Interior doors
• Weight to 250 lbs.
• Door sizes up to 3'6"x 8'6" (1067 x 2591mm)
• Non-handed
• 320 top pivot included
• Bottom pivot mounts directly to the floor
• Weight of door borne by floor
• Pivot point centered in thickness of door
• Door must have radius on pivot edge
• Not allowed for use on fire labeled doors and frames
• Pivot point remains constant at 1-1/4" (32mm) from the edge of the door
• Furnished with wood and machine screws
• Maximum Door Weight: 250 lbs.
• Factory Warranty: 2-year limited warranty

Available Finish:
• US26D/626: Satin Chrome Plated
• US10B/613: Oil Rubbed Bronze

Availability:
• Usually Ships in 1-2 Business Days
