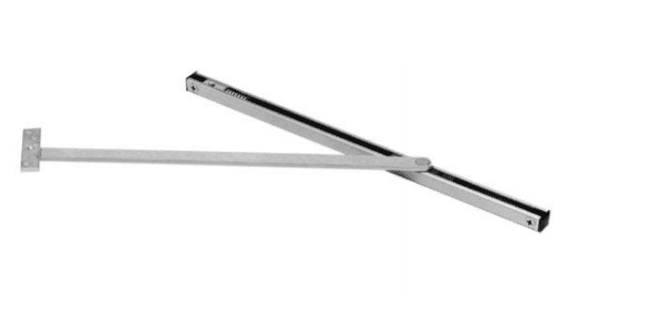

Rixson 10-136 Surface Applied Adjustable Overhead Stop
Overhead stops are used to protect door assemblies. They cut down the wear and tear of frequency, closing mechanisms, wind gusts, abuse and vandalism. By limiting the door travel, they can add years to the life of the door, frame, and hanging means. Overhead holders and friction stays add convenience for the end user who already appreciates the need for the overhead stop.
Proper door control through the use of a combination door holder/ stop minimizes damage to the door and frame, walls and any glass in the door. Virtually maintenance free, these rugged devices provide shock-absorbing door stopping power and convenient hold-open capabilities.
*** This item is an overstock item. All Sales final. No Returns or Exchanges ***
There's a limited quantity left in stock. Only 1-pc left, Max order is 1.
Features of the Rixon 10-136 Surface Applied OH Stop
• Adjustable
• Interior doors

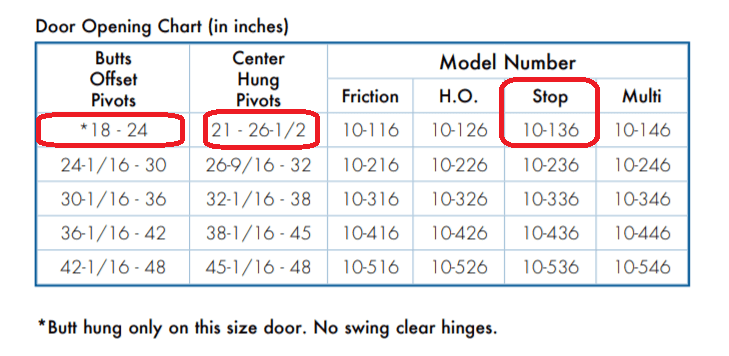

• For Single acting doors 18" - 24" when using butt hinges or offset pivots.
• Non-handed
• Slide track design
• Recommended for moderate traffic, medium weight doors
• Degree of opening fully adjustable and can be adapted to changing needs
• Heavy shock absorber spring provides compression before deadstop
• Can be ordered specifically as a stop, friction stay, or hold open.
• Complete screw packet with thru-bolts for door, wood and machine screws for frame
• Standard architectural finish: 630-Satin Stainless Steel
• Durable slider cam and shock block
• 110° maximum opening
• 3/4" square channel
• Stop function UL listed for fire door assemblies
• For push side mouning only. For pull side mount # 5258 bracket ios required (not included).
• Hanging means other than standard butts or offset pivots require special templating and pricing. Consult factory
• Made in the USA
