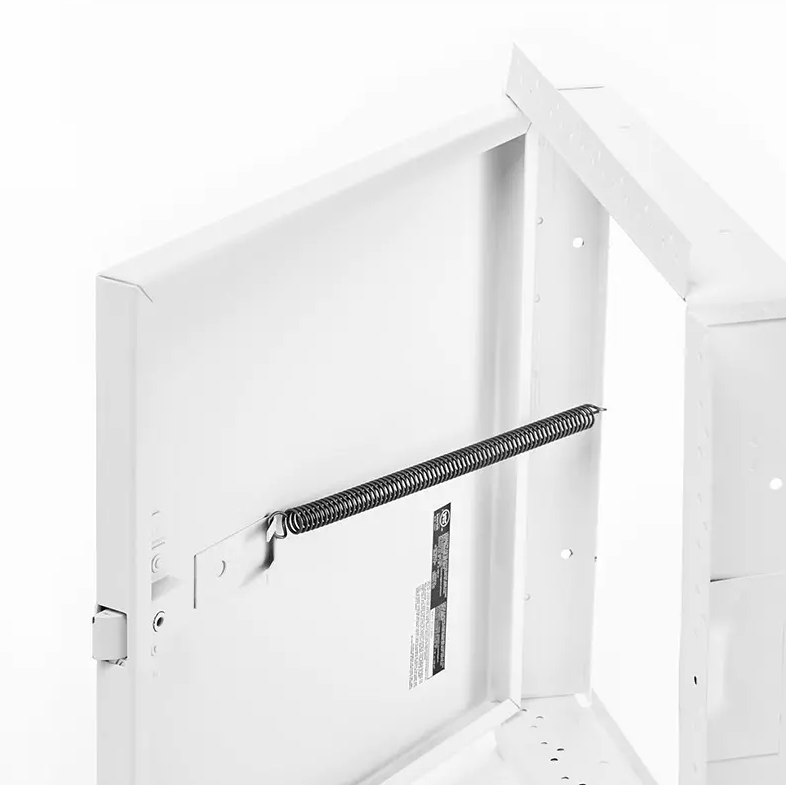

PFN-GYP Fire Rated Non-Insulated Steel Access Panel with Drywall Bead Flange, Standard Turn-Ring & Tool-Key Latching

Fire Rated Non-Insulated Steel Access Door with Drywall Bead Flange
For Wall Installations Only
Drywall Bead Flange for Tape & Spackle
Self-latching tool-key and ring operated slam latch (standard) & piano style hinge

Features & Specs of the PFN-GYP Fire Rated Non-Insulated Steel Access Door

• Fire Rating: 2 hour fire barrier, 1 ½ hour B label,  Warnock Hersey file #: L-14031 in corformance with the following codes: UL10b, UL-555, ASTM E152, NFPA 252, ULC-S104 & MEA # 507-06-M
• Material: 16 gauge steel
• Frame: 2 1/2" in depth
• Flange: 22-gauge galvanized steel, 1 ⅛" drywall bead flange for tape & spackle
• Hinge: continuous piano hinge allows opening to 165°
• Latch/Lock: Self latching tool-key operated latch and/or ring operated latch, both included
• Inside Panel Release: standard on all doors
• Automatic Panel Closer: standard on all doors
• Finish: powder coat white primer
• Packaging: wrapped individually in a box
• Rough Opening: Width + 1/4" x Height + 1/4".



NOTES:
1.  Max. size to maintain fire rating: 36" x 36".
2.  Sizes noted with a * will ship in 1-2 business days.  All other sizes will ship in 7-10 working days.
