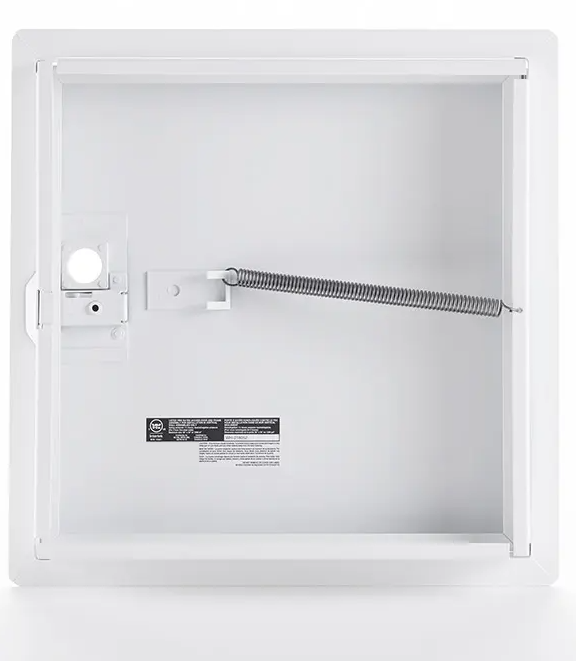

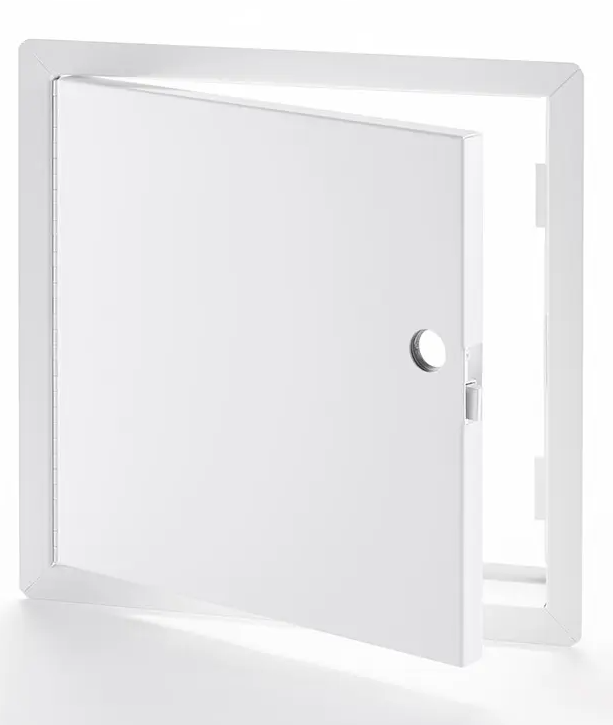

PFN Fire Rated Non-Insulated Steel Access Panel with Mortise Cylinder Slam Latch

Fire Rated Non-Insulated Steel Access Door with Exposed Flange
For Wall Installations Only

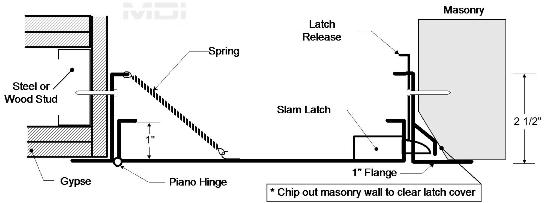

Self-latching mortise cylinder slam latch & piano style hinge

Features & Specs of the PFN Fire Rated Non-Insulated Steel Access Door

• Fire Rating: 2 hour fire barrier, 1 ½ hour B label,  Warnock Hersey file #: L-14031 in corformance with the following codes: UL10b, UL-555, ASTM E152, NFPA 252, ULC-S104 & MEA # 507-06-M
• Material: 16 gauge steel
• Hinge: continuous piano hinge allows opening to 165°
• Latch/Lock: Self latching mortise cylinder slam latch (mortise cylinder is optional)
• Inside Panel Release: standard on all doors
• Automatic Panel Closer: standard on all doors
• Finish: powder coat white primer
• Packaging: wrapped individually in a box
• Rough Opening: Width + 1/4" x Height + 1/4".



NOTES:
1.  Special sizes can be quoted.  Please contact MDI.
