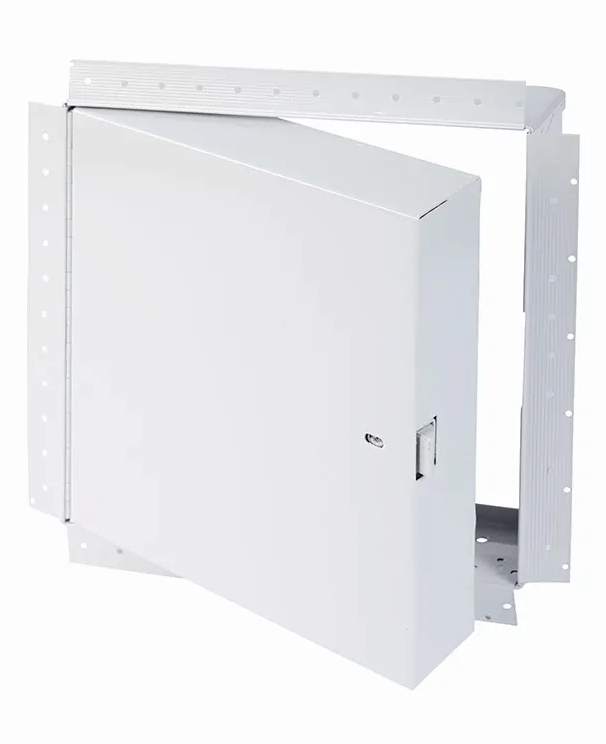

PFI-GYP Fire Rated & Insulated Steel Access Panel with Perimeter Drywall Bead Flange
With Standard Slam Latch - Turn-Ring & Tool Key (Both Supplied)
Features of the PFI-GYP Fire Rated Insulated Steel Access Door w/ Standard Latching:
- 20-gauge galvanneal steel door and 16-gauge cold rolled steel frame
- Continuous piano hinge. Hinge location: Hinges must be located on the second dimension (height).
- Self-latching tool-key operated slam latch and ring-operated slam latch, both included.

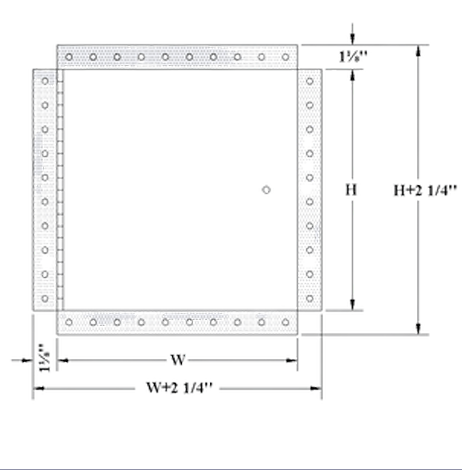

- -GYP: Perimeter Drywall Bead flange (for Tape & Spackle): 22 gauge galv steel x 1 1/8" Flange
- Frame: 2½ " in depth, made of cold rolled steel
- Rough opening = Door sizes + ¼" or + 6mm
- Insulation: 2" thick fire rated mineral wool
- Inside panel release (standard). Mechanisms to allow panels to open from inside, standard on all doors over 12" X 12 inches.
- White powder coat primer.
- Packaging: Individually wrapped, 1 door per box.

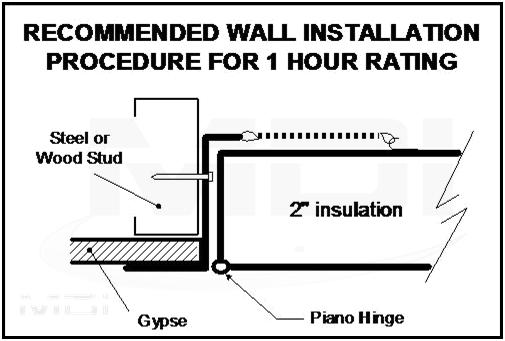

Fire Rated Access Doors, for vertical use, are subject to the following:
- Vertical wall assemblies
- Certification: UL 10B (2009), NFPA 252 (2012), CAN/ULC S104 (2010).
- Rating Achieved: 3 hours, neutral/negative pressure
- Maximum size 48" x 48" (1219mm x 1219mm), maximum area of 2304 in², tolerance on height and width limitation is more or less 3" (76mm) as long as the area does not exceed 2304 in².
- Temperature rise 250°F (121°C) after 30 minutes and 450°F (232°C) after 60 minutes.

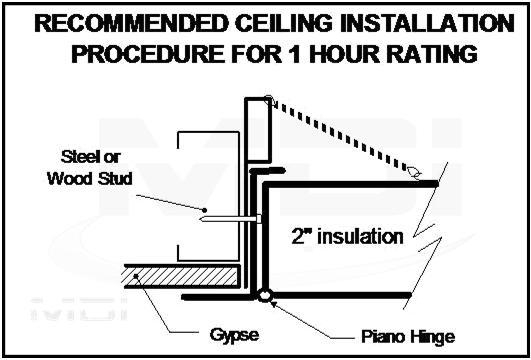

Fire rated Access Doors, for horizontal use, are subject to the following:
- Horizontal ceiling assemblies
- Certification: ASTM E119 (2012), CAN/ULC S101 (2007)

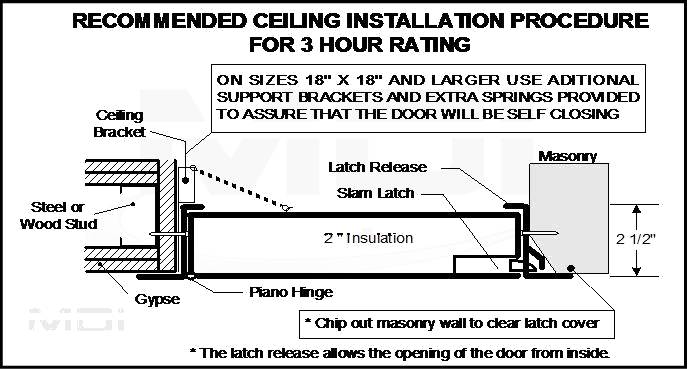

- Rating Achieved: 3 hours in non-combustible construction and 1 hour in combustible construction
- Maximum size 24" X 36" (610 mm X 914 mm) (hinges and latches on the side of 36"), tolerance on dimension limitations are more or less 3" (76 mm) as long as the area does not exceed 864 in².
- Temperature rise Within allowable per ASTM E119 and CAN/ULC S101
Availability:
- 12" x 12" and 24" x 24" Usually Ship in 1-2 Business Days.
- All other sizes ship in 1-2 Weeks.
