Pemko DSH1000 Behavioral Health Double Swing Pin and Barrel Continuous Hinge, For 7 ft. Doors, Clear Anodized Aluminum

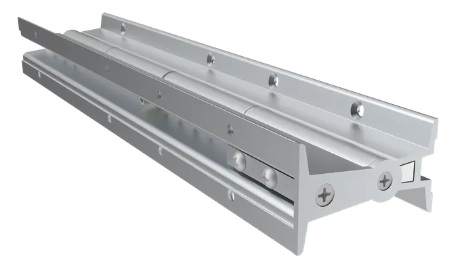

Pemko DSH1000 Behavioral Health Double Swing Pin and Barrel Continuous Hinge

The DSH1000 Double Swing Pin and Barrel Hinge allows the door to swing 100-degrees in either direction for emergency access.

Features of the Pemko DSH100 Behavioral Health Double Swing Pin and Barrel Continuous Hinge:

• Designed specifically for behavioral health applications.
• Allows the door to swing 100 degrees in either direction for emergency access.
• Combine with Pemko Emergency Release Stop (ERS) or multipoint version (ERSMP) for complete anti-barricade system.
• Prevents door barricades by allowing door to swing inward or outward.
• 100-degree maximum swing in either direction, provides full access.
• Reduces the infiltration of light, air, wind, rain, and snow; prevent heat loss; and control the penetration of smoke and fumes.
• Hard stop prevents pinched fingers.
• Suitable for use in high risk mental health applications.
• Guaranteed for the life of the opening against defects in material or workmanship.

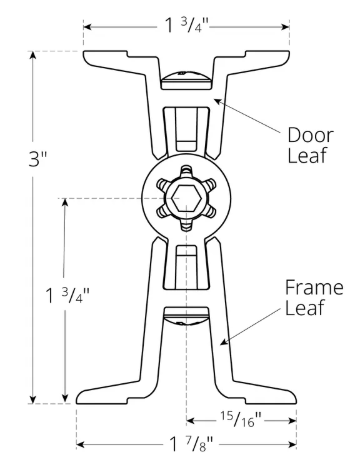

Specifications of the Pemko DSH100 Behavioral Health Double Swing Pin and Barrel Continuous Hinge:

• Grade: Grade 1
• Base Material: Aluminum Alloy
• Hinge Mounting Type: Double Swing Edge Mount
• Hinge Strength: Heavy Weight
• Handing: Non-handed
• Fasteners: TORX-Wood
• Fastener Type: Self Tapping
• Door Thickness: 1 3/4"
• Swing: 100°
• Minimum Hinge Clearance: 3"
• Max Weight: Up to 600lbs.
• Finish: C- Clear Anodized Aluminum

Certifications:

• ANSI/BHMA Standard A156.26 Grade 1
• Refer to the New York State Office of Mental Health (OMH) Patient Safety Standards for current product compliance

Availability:

• Usually Ships in 2-3 Weeks

Finish:

• C-Clear Anodized Aluminum
