Pemko 375 Series Overlapping Astragal with Sponge EPDM Insert Seal
...Available in 5-finishes to choose from
The 375_R Overlapping Astragal is perfect for preventing infiltration of fire, smoke, light, dust, drafts, and sound in double-door entryways. This surface-mounted astragal features a 1.25" wide casing filled with a Sponge EPDM seal. It is available in various finishes and can be custom cut to size. Easy installation with provided screws.
Features of the Pemko 375 Series Overlapping Astragal:
- Overlaps door with sponge EPDM seal
- Applied to single active door in a pair of double doors
- Installation on fire doors must meet NFPA 80 requirements
- Neoprene seal slightly compressible for an excellent seal

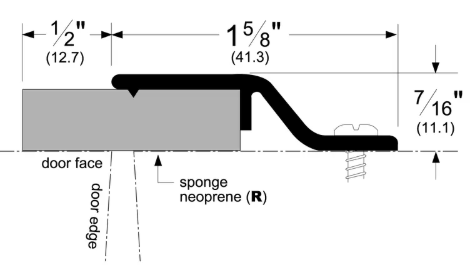

- Order Size: 7'-0" (84") Length x 1 5/8" Wide (plus sponge neprene seal).
- Net Length: 84". Can be field-trimmed as needed.
Benefits of the Pemko 375 Series Overlapping Astragal::
- Covers the gap between a pair of double doors
- EPDM seal is eco-friendly
- Flexible at high and low temperatures
- Resists deterioration from oily substances
Specs & Certifications:
-
Base Material: Aluminum
- Door Edge: Square, Bevel
- Fasteners Included: Sheet Metal Screw #6 x 5/8
- Handing: Non-handed
- Overall Height: 7/16"
-
Net Length: 84". Can be field-trimmed as needed.
- UL 1784 - Standard for Air Leakage Tests of Door Assemblies and Other Opening Protectives
- UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies
- ASTM E-283-04 (2012)
- ANSI/BHMA A156.22 Door Gasketing and Edge Seal Systems
-
Available Finish:
-

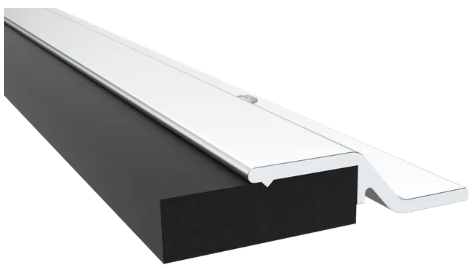

375CR: Clear Anodized Aluminum x Black Seal
-

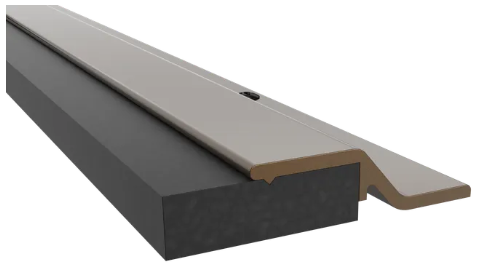

37510BER: Dark Oxidized Satin Bronze Equivalent Aluminum x Black Seal
-

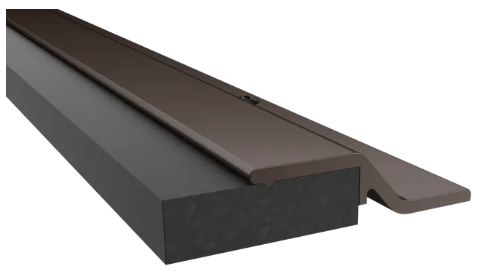

375DR: Dark Bronze Anodized Aluminum x Black Seal
-
375BSPR: Black Suede Powder Coat Aluminum x Black Seal
-

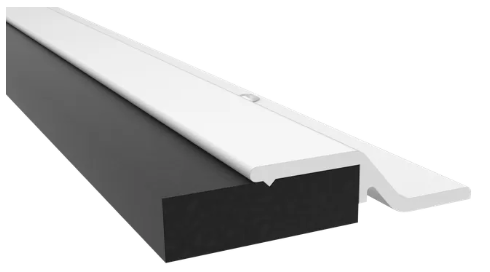

375WSPR: White Suede Powder Coat Aluminum x Black Seal
-
Lead-Time:
- Usually Ships 1-2 Weeks After Order.
BUYER NOTICE:
This item is special order and once ordered it cannot be canceled, returned or exchanged.
