Pemko 325XGSSN Surface Door Sweep For Excessive Gap Solutions on Fire Door

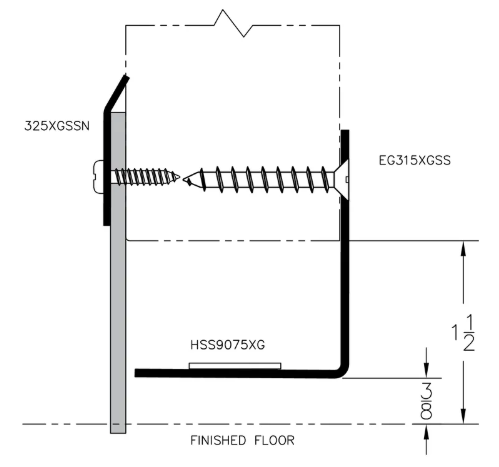

The 325XGSSN Series presents a U-shaped Stainless Steel Door Shoe tailored for single or pairs of doors with significant gaps, accommodating all door models and effectively addressing gaps of up to 1-1/2". The kit encompasses a stainless steel door bottom sweep with a neoprene gasket, complete with an end plate kit and featuring the HSS9075XG high-performance intumescent, ensuring a comprehensive solution for efficient gap sealing and fire protection, with the clearance between the door and bottom angle and the finished floor not exceeding 3/8".
*** This item is special order and cannot be returned or exchanged ***
Features & Benefits of the Pemko 325XGSSN Excessive Gap Sweep:
-
Kit includes a door bottom sweep made from stainless steel and neoprene gasket; end plate kit provided.
-
Kit includes door bottom angle made from stainless steel, incorporates HSS9075XG high-performance intumescent.
- Clearance between the door bottom angle and the finished floor is to be no more than 3/8".
- Meets UL10C requirements for use on 90-minute fire-rated single or pairs of doors.
- Brings fire doors back to compliance with code.
- Easy to trim in the field.
- Eliminates costly expense of replacing doors.
- Quick and easy resolution to fire door inspection issues.
- Meets fire code requirements.
- Saves on installation time.
- Can be field-trimmed by the installer for a perfect fit to your required size.
Specifications of the Pemko 325XG Excessive Gap Surface Door Sweep:
- Base Material: Stainless Steel with Dense Neoprene Insert
- Fasteners: Wood Screw #12 x 1 1/2" x #10
-
Overall Height: 2 1/2"
- Width: 1 3/4"
-
Finish:
- SS-Stainless Steel
-
10BE-Dark Oxidized Satin Bronze Equivalent
- BSP-Black Suede Powder Coat
- WSP-White Suede Powder Coat
Certifications:
- UL Listed For Use on Fire Doors
-
UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies
Product Testing:
Solutions for door and frame clearances that exceed the guidelines of NFPA 80 when installed per the manufacturer's instructions, intended for use with UL or Intertek Classified steel composite, hollow metal, wood, and plastic covered composite core doors with UL or Intertek listed frames rated up to 1 1/2 hours.
Availability:
-
Usually Ships in 1-2 Weeks
