Pemko 211 L-Shaped Door Shoe with Eco-V Vinyl Insert

Pemko 211 L-Shaped Door Shoe with Eco-V Vinyl Insert

Pemko Gasketing & Saddles

SKU: PEM-211AV-36

Availability : Usually ships in 1-2 weeks.

$14.00
$69.00 $14.00
Sale Sold out
Shipping calculated at checkout.

Product Options:
Application: Works on Both 1 3/8" & 1 3/4" thick doors
Certifications: UL Listed & Greenguard Gold

Click here for a Cut Sheet on the Pemko 211 L-Shaped Door Shoe

Click here for a Installation Instructions on the Pemko 211 L-Shaped Door Shoe

View full details

Pemko 211 L-Shaped Door Shoe with Eco-V Vinyl Insert Information

Pemko 211 L-Shaped Door Shoe with Eco-V Vinyl Insert

The 211 Aluminum L-Shaped Door Shoe is designed to fit all door thicknesses. It is available with either an Eco-V (Vinyl) insert, and is fire and smoke rated. The sweep is custom-cut to size and comes in various finishes. The Eco-V insert has low VOC emissions and is GREENGUARD GOLD certified for indoor environments.

*** This item is special order and cannot be returned or exchanged ***

Features of the Pemko 211 L-Shaped Door Shoe:

  • Available with PemkoPrene™ (PK) or Eco-V™ (V); both are the same shape and size. PK-PemkoPrene is by Special Order.  Please contact MDI for a price quote.
  • Supplied with 1/4" undercut from length ordered, except where otherwise specified. Specify "Net Length" to receive custom measurements as ordered.
  • Slotted holes for easy adjustment.
  • Recommended compression of the gasket is 1/16".
  • Half notch (1/2") and Full notch (1/2") available. Other widths offered on Half Notch, please specify when ordering.
  • Provides protection for the bottom of the door.
  • Blocks unwanted airflow and light, and provides privacy.
  • Can be field-trimmed by the installer for a perfect fit to your required size.

Specifications of the Pemko 211 L-Shaped Door Shoe:

  • Base Material: Aluminum
  • Fasteners: PHSMS #6 x 5/8"
  • Overall Height: 1 5/8"
  • Finish:

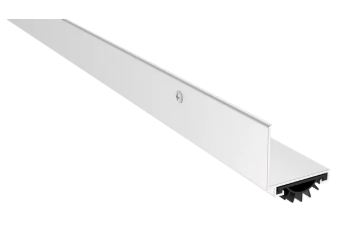

    • AV-Mill Aluminum

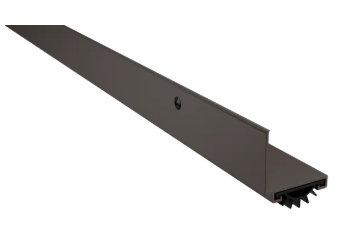

    • DV-Dark Bronze Anodized Aluminum

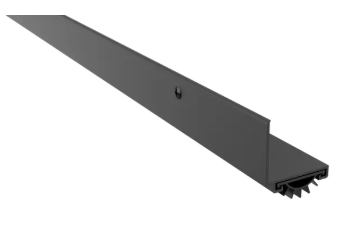

    • BSPN-Black Suede Powder Coat

Certifications:

  • GREENGUARD Gold Certified
  • UL 1784 - Standard for Air Leakage Tests of Door Assemblies and Other Opening Protectives
  • UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies
  • ANSI/BHMA A156.22 Door Gasketing and Edge Seal Systems

Availability:

  • Ships in 1-2 weeks
