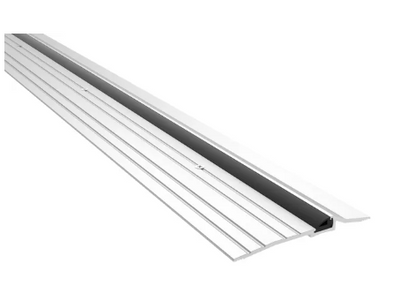

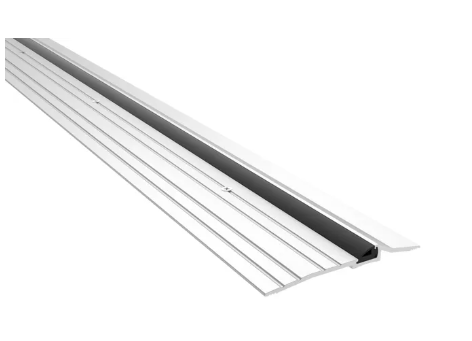

• Mill aluminum threshold strip with prene insert seal and sloped latching edge
  • Acoustic latching panic threshold seal in mill aluminum finish, prene insert profile
1 2

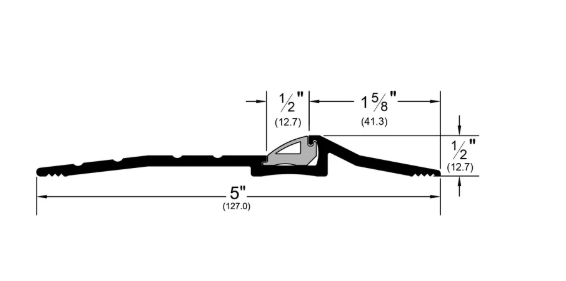

Pemko 2009APK Acoustic Latching Panic Threshold w/ Pemko Prene Insert Seal, 5" x 1/2", Mill Aluminum Finish

Pemko 2009APK Acoustic Latching Panic Threshold w/ Pemko Prene Insert Seal, 5" x 1/2", Mill Aluminum Finish

Pemko Gasketing & Saddles

SKU: PEM-2009APK-36

Availability : Usually Ships in 1-2 Weeks

$52.50
$0.00 $52.50
Sale Sold out
Shipping calculated at checkout.

Product Options:
Finish: Mill Aluminum Finish with PemkoPrene Seal x Black
Buyer Note: This item is special order, therefore once ordered it cannot be canceled, returned or exchanged.

Click here for Pemko 2009APK Cut Sheet

Click here for Pemko 2009APK Data Tech Sheet

View full details

Pemko 2009APK Acoustic Latching Panic Threshold w/ Pemko Prene Insert Seal, 5" x 1/2", Mill Aluminum Finish Information

Pemko 2009APK Acoustic Latching Panic Threshold w/ Pemko Prene Insert Seal, 5" x 1/2", Mill Aluminum Finish

The 2009APK Latching Panic Saddle Threshold is 5" in width and a versatile option for acoustic applications allowing for a 3/8" door clearance. It features an integrated PemkoPrene gasket to seal against sound, air infiltration, wind, and debris. This threshold is ADA compliant, and concealed fasteners are available as an option. It is also available with an optional non-skid PemKote finish. The threshold is tested for air infiltration, sound, smoke, and fire ratings.


Pemko 2009APK Acoustic, Latching Panic Threshold Features and Benefits:

  • Wood screw standard, other fasteners available
  • Required undercut - minimum of 9/32", maximum of 15/32"
  • Optional concealed fasteners
  • Includes PemkoPrene insert
  • Non-skid PemKote option available
  • United States Patent Number 9,920,567
  • Ideal for acoustic applications
  • Fire rated
  • Integrated stop provides excellent sealing at the bottom of the door
  • ADA-compliant
  • Protects against sound, wind, debris, and more
  • Pre-Drilled Fastener Holes: Yes
  • Fastners: SMS #10 x1"
  • Finish: MIll Aluminum w/ Black PemkoPrene Seal
  • Rubber-like materials that can be processed like conventional thermoplastics
  • Possesses the same flexibility and durability common to natural rubber compounds
  • Offers excellent design freedom in the field of architectural door seals
  • Outstanding resistance to cleaning fluids and disinfectants
  • Everyday resilience and low impedance to opening or closing requirements on door assemblies
  • Used for general purpose gaskets, weatherstripping for windows and doors, and commercial glazing seals


Certifications:

  • GREENGUARD Gold Certified
  • UL 10C positive pressure
  • UL 4L10 listed
  • Environmental Product Declaration (EPD)
  • ASTM E-283-04 (2012)
  • ASTM E 90-2009
  • Americans with Disabilities Act (ADA) Compliant
  • ANSI/BHMA A117.1
  • ANSI/BHMA A156.21 Thresholds


Availability:

Usually Ships in 1-2 weeks
