Pemko CFS Full Surface Continuous Hinge
The Pemko FS Series Full Surface Continuous Geared Hinge is designed mainly for retrofit work and is applied to the exposed surfaces of the door and frame. This hinge is available in standard and heavy duty models, as well as our PemKonnect® modular version (FS_HD1-M) that is primarily designed for freight savings and ease of transportation. Contact MDI for other models.
Fasteners:
Tek Screws (self-drilling) - included
Finish:
C - Clear Anodized Aluminum
Size & Handing:
79-inch LH: Left Hand
79-inch RH: Right Hand
83-inch: Non-Handed
Certifications:
Health Product Declaration (HPD)
UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies
ANSI/BHMA Standard A156.26
Pemko Full Surface Continuous Hinge - Features and Details:
» Standard duty hinge. 6" between bearing centers.
» Standard duty hinges conform to Grade 3-150 and Grade 3-300 cycle requirements per BHMA standard ANSI/BHMA A156.26-2006.
» Tested and certified by Underwriters Laboratories Inc. (USA and Canada) to standard UL10B, UL10C and UBC 7.2 (positive pressure) for up to a 3-Hour (A-Label) fire listing for all 4 ft. 0 in. x 10 ft. 0 in. and 8 ft. 0 in. x 10 ft. 0 in. door and frame assemblies. Fire listing certifications apply to all approved hollow metal and wood door assemblies in drywall or masonry construction.
» Aluminum continuous hinge for use on swinging type fire doors of the hollow metal, tin-clad, sheet metal and steel covered composite type rated up to 3 hours, wood covered composite type rated up to and including 1-1/2 hours. Also wood core rated up to and including 20 minutes without hose stream.
» All hinges meet criteria of UBC 7.2 for positive pressure.
» Special FirePins are only required on 3-Hour (A-Label) assemblies.
» Certain door and frame conditions may require an extra 1/32"-1/16" clearance. Excessive clearance on fire rated assemblies may violate the requirements for NFPA 80.
» PemkoHinge products are guaranteed for the life of the opening against defects in material or workmanship with the exception of AL, RS, standard duty and Grade 3 hinges, which carry a 10 year warranty.
» Weight bearing (per BHMA standard ANSI/BHMA A156.26-2006) for standard models: 83" and 85" = 14 bearings, door weight = 280 lbs.; 95" = 16 bearings, door weight = 320 lbs.; 120" = 20 bearings, door weight = 400 lbs.
» Special hinge reinforcements are not required. Hollow metal door and frame manufacturers’ standard is acceptable. Removal of hinge reinforcements in the door and frame is not advised.

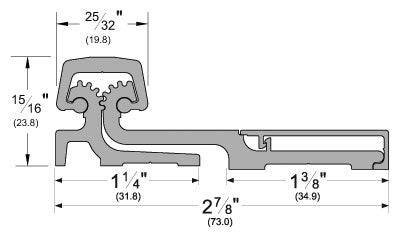

SIZE:
» Width: 1-1/4” (31.8 mm) (frame side - leaf).
» Width: 1-3/8” (34.9 mm) (door side - leaf).
» Cap Width: 25/32” (19.8 mm).
» Height: 29/32” (23.0 mm) (total height of hinge)
» Max Door Thickness: 1 3/4"
» Min Door Thickness: 1 3/4"
» Max Door Swing: 180°
