Pemko CFM Full Mortise Continuous Hinge 83"
Pemko's offering of anodized aluminum continuous geared hinges. PemkoHinge consists of two full-height, paired and geared leaves. Each geared leaf rotates evenly from top to bottom riding on bearings. The geared leaves and bearings are held together by a full-length channel cap.
Pemko's anodized aluminum Full Mortise continuous geared hinges have one leaf mounted to the edge of a door and the other leaf mounted on the rabbet edge of a frame.
Fasteners are:
No. 12-24 x 7/16" FHUC, Type C, thread-forming, no tapping required.
Applied to conceal both leaves.
Finish:
CFM: C - Clear Anodized Aluminum
Material:
Aluminum
Door Thickness:
For 1 3/4" to 2 1/4" thick doors
Grade:
Grade 1
Standards:
BHMA Certified, Fire Rated - UL10C - Positive Pressure, cULus, Listed Door Hinge 76Y2, Pemko Hinge Fire Rating UL76Y2
Tech Data Sheets:
Click here to open a cut sheet on the Pemko CFM Full Mortise Continuous Hinge
Click here for Installation instructions on the Pemko CFM83 Continuous Geared Hinge
Pemko CFM Full Mortise Continuous Hinge Features & Details:
Heavy Duty Anodized Aluminum Continuous Geared - designed mainly for new door applications.
- Applied to conceal both leaves
- Fasteners are #12-24 x 11/16” Flat Head Undercut, Type C, thread-forming fasteners, no tapping required

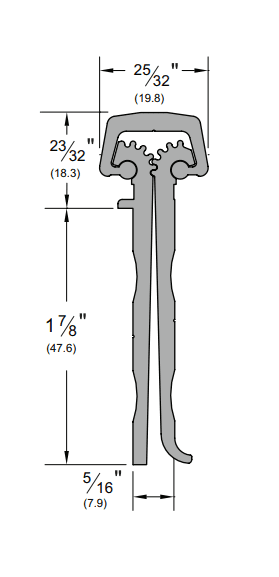

Specs:
| Dimensions |
|
| Minimum Hinge Clearance |
5/16" (7.9mm) |
| Cap Width |
25/32" (19.8mm) |
| Leaf Height (to flange/frame edge side) |
1-7/8" (47.6mm) |
| Overall Hinge Height |
11/16" (17.5mm) |
