Pemko 573X5AFG Thermal Barrier Saddle Threshold with Flexible Joint, 10.25-inch wide, Mill Aluminum

Pemko 573X5AFG Thermal Barrier Saddle Threshold with Flexible Joint, 10.25-inch wide, Mill Aluminum

SKU: SKU:PEM-573X5AFG-36

Availability : Usually Ships in 2-Weeks

Regular price $186.00
Regular price $565.00 Sale price $186.00
Sale Sold out
Shipping calculated at checkout.

Product Options:

Finish: A - Mill Aluminum
View full details

Pemko 573x5AFG Flexible Threshold
MDI Supply pleased to introduce the Pemko 573x5 series threshold, a commercial threshold with a flexible joint. The flexible joint allows the threshold to flex as much as 20 degrees up or down, or to expand up to an additional 1/4". Ideal applications include uneven floor surfaces or building components that expand and contract, or move slightly, such as a floating ramp or an expansion joint.

The flexible joint is made from a thermoplastic elastomer that adds an additional benefit as a thermal barrier. A thermal barrier threshold doesn’t allow heat to be transferred from one side of the threshold to the other, which would normally cause condensation.

This item is special order and once ordered it cannot be canceled, returned or exchanged.

Features of the Pemko 573X5 series threshold:

  • Variable Width - 10" to 10-1/4"
  • Variable Use - Expansion Joint Saddle, Thermal Barrier Threshold, Offset Flooring
  • TPE Joint Flexes Upwards and Downwards - Great for a flexing floor surface or fixed uneven flooring.
  • Non-handed for easy installation
  • Low profile which meets ADA Compliance.
  • Improves thermal performance by minimizing transfer of hot and cold temperatures

Details and product specs of the Pemko 573x5 series threshold:

Material: 6063-T6 Aircraft Aluminum
Threshold Width: 10" (expandable to 10 1/4")
Height:
1/4"
Available Finishes: A - Mill Aluminum FInish
D - Dark Bronze Anodized Aluminum
Threshold Flex: +/- 20 Degrees
Fasteners: Wood screw standard (included)
Insert Material: Black PemkoPrene
UL Listed: UL 10C positive pressure; UL 4L10 listed
ANSI/BHMA: ANSI/BHMA A117.1;  ANSI/BHMA A156.21 Thresholds
GreenGuard: GREENGUARD Gold Certified
Certified: Americans with Disabilities Act (ADA) Compliant
Mfg Model #: 573x5AFG
UPC #: UPC 086787493358
MDI Supply Item #: PEM-573X5AFG
Packaged & Sold: Individually


Pemko 573x5AFG Flexible Commercial Threshold
MDI Supply pleased to introduce the Pemko 573x5 series threshold, a commercial threshold with a flexible joint. The flexible joint allows the threshold to flex as much as 20 degrees up or down, or to expand up to an additional 1/4". Ideal applications include uneven floor surfaces or building components that expand and contract, or move slightly, such as a floating ramp or an expansion joint.

The flexible joint is made from a thermoplastic elastomer that adds an additional benefit as a thermal barrier. A thermal barrier threshold doesn’t allow heat to be transferred from one side of the threshold to the other, which would normally cause condensation.

Downloads for the Pemko 573x5 series threshold:

Installation Instructions: Click here to download installation instructions for the Pemko 573x5 threshold

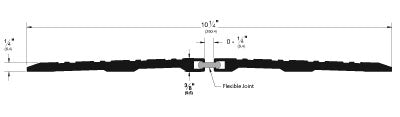

Technical Drawing: Click here to download a technical drawing of the Pemko 573x5 threshold
MSDS: Click here to download Material & Safety Data Sheets of the Pemko 573x5 threshold
Catalog/Brochure Click here to download the catalog/brochure of the Pemko 573x5 threshold
