Pemko 411ARL Concealed Automatic Door Bottom for 1 3/4-inch Thick Door

Pemko 411ARL Concealed Automatic Door Bottom for 1 3/4-inch Thick Door

SKU: SKU:PEM-411ARL

Availability : Usually ships in 2-3 business days

Regular price $65.00
Regular price $175.00 Sale price $65.00
Sale Sold out
Shipping calculated at checkout.

Product Options:

View full details

Pemko 411ARL Concealed Automatic Door Bottom
Concealed door bottom with mill aluminum finish with black sponge neoprene insert for 1 3/4" thick doors

Pemko door bottom seals consist of a variety of solutions for sealing a door to the threshold or floor surface.

Pemko automatic door bottoms consist of an aluminum case which surrounds a movable drop bar seal. The drop bar seal is actuated by a plunger which contacts the jamb as the door is closing, forcing the drop bar seal down against the floor or threshold.

Details and product specs of the Pemko 411ARL concealed automatic door bottom:

Door Thickness Required: 1 3/4" (standard)
Material: Aluminum case w/ neoprene seal
Undercut Seal: This door bottom can seal up to a 3/4" gap under the door
Application: Can be used in a wood or HM steel door
Movable Drop Bar Seal Anodized aluminum
Width x Height 9/16" x 1 3/8"
Neoprene: Black

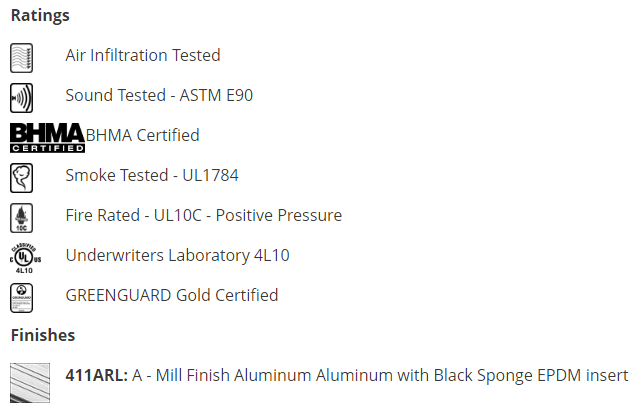

Ratings: Air, Smoke, Fire & Sound Tested, ANSI/BHMA Certified, UL Listed
Factory Comments: Smoke Tested - UL1784 - tested in accordance with UL 1784-2001Air Leakage Tests of Door Assemblies, and meet the performance criteria for allowable air leakage as specified in NFPA 105-99 Installation of Smoke Control Door Assemblies. Meets the requirements for category H - Smoke Seals.
Handed: Non-handed.  Can be field-trimmed (up top 2") for an exact fit to a door.
Finishes Available: A - Mill Aluminum
Mfg Model #: 411ARL
MDI Supply Item #: Pemko-411ARL
Packaged & Sold: Individually
   Pemko Logo

Pemko # 411ARL Concealed Automatic Door Bottom
Concealed door bottom with mill aluminum finish with black sponge neoprene insert for 1 3/4" thick doors.

Click here to down load a product cut sheet of the Pemko 411ARL door bottom
