Pemko 345AV Door Bottom Sweep, Mill Alum w/ Gray Vinyl Insert

Pemko 345AV Door Bottom Sweep

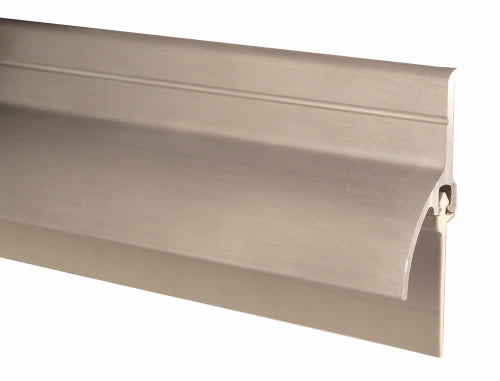

The 345 Series Surface Plate Door Sweep and Rain Drip is designed for doorways where deflecting the elements is essential. It combines a built-in rain deflector plate and a surface door sweep all in one.  This door bottom sweep is supplied with a gray Eco-V ("V") insert.

Door sweeps are surface applied to the face of a door. They are commonly used on the exterior of outswing doors.

Tech Data Sheets:
»  Click the Mfg./Model # to download a cut sheet on the Pemko # 345AV.
»  Click the Mfg./Model # to download installation instructions on the Pemko # 345AV.

Features & Application:
»  Door sweeps are surface applied to the face of a door.
»  Commonly used on the exterior of out-swing doors.
»  Slotted holes are standard.
»  MIll finish aluminum w/ gray Eco-V insert.

More Details:
»  Pemko 345AV:    Mill Finish Aluminum Aluminum with Gray Vinyl insert

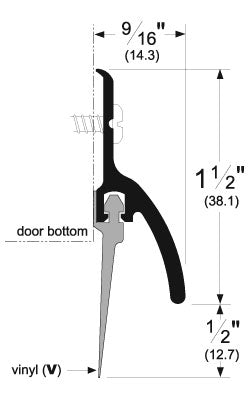

»  Size: 1 1/2" height plus insert x 9/16" width x door size.
