Pemko 315 Heavy Duty Surface Door Sweep
The 315_N Surface Plate Door Sweep is designed with a 1.25" aluminum casing and a neoprene extrusion that is rated for smoke, fire, and air infiltration. It creates a seal between the door bottom and the threshold/floor surface. Available in various finishes and sizes, this door sweep is easy to install. Screws are included and color-coordinated with the casing.
Features of the Pemko 315 Surface Door Sweep:
- Slotted holes for eash adjustment
- Fitted with a neoprene synthetic rubber extrusion
- Surface applied
- Seal up to a 7/16" gap between the door and threshold or to the floor surface.
- Not recommended in situations that invlved significant gasoline or other fuel oil, kerosene, propane, or mineral oil.
- Reduces the infiltration of light, air, wind, rain, and snow; prevent heat loss; and control the penetration of smoke and fumes.
- Outstanding resistance to abrasion, hydraulic fluids, alkalis, heat, ozone, weather.
- Resistant to polar substances and steam.
- Can be field-trimmed by installer for a perfect fit to your required size.

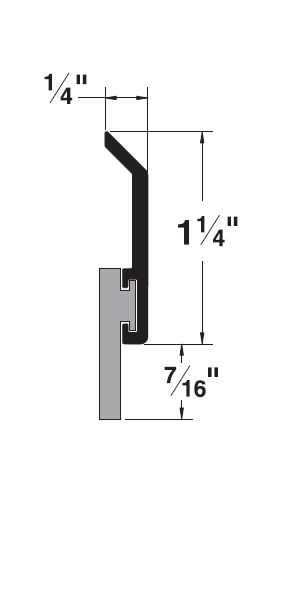

Specifications of the Pemko 315 Surface Door Sweep:
- Base Material: Aluminum
- Fasteners: PHSMS #6 x 5/8"
- Width: 1/4"
- Profile Height: 1 1/4"
-
Cross Reference: NGP 200; Zero 39
-
Finish:

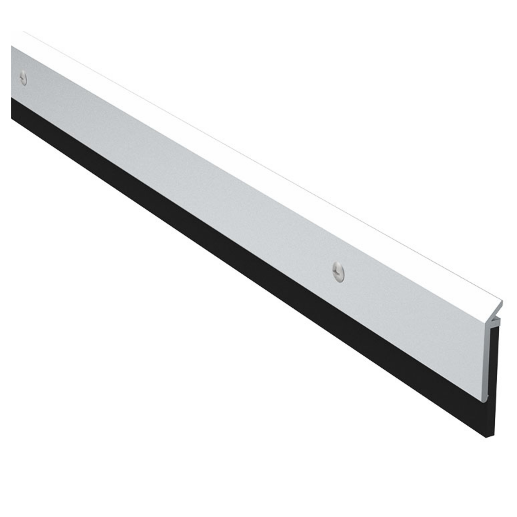

- C-Clear Anodized Aluminum

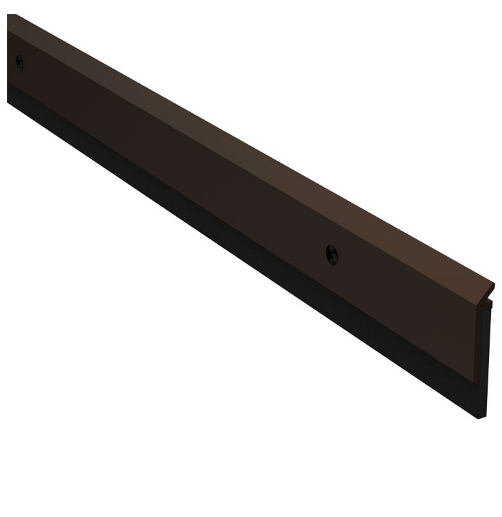

- D-Dark Bronze

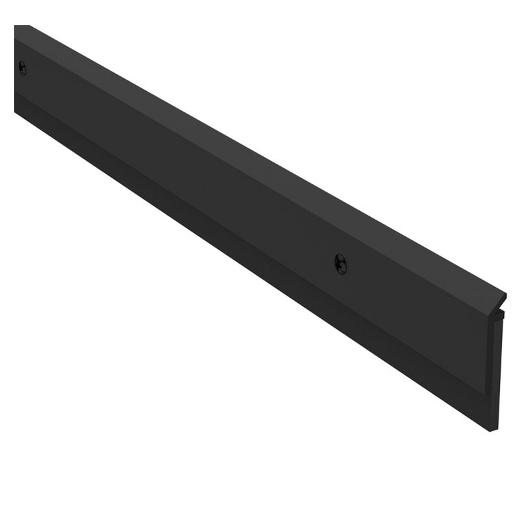

- BSP-Black Suede Powder Coat

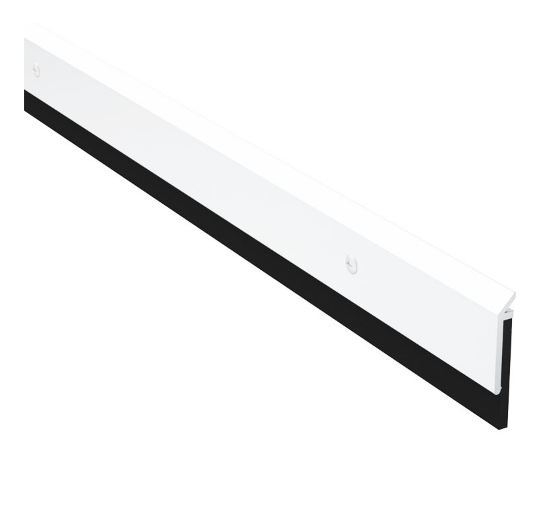

- WSP-White Suede Powder Coat
Certifications:
- GREENGUARD Gold Certified
- UL 1784 - Standard for Air Leakage Tests of Door Assemblies and Other Opening Protectives
- UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies
- ASTM E-283-04 (2012)
- ASTM E 90-2009
- ANSI/BHMA A156.22 Door Gasketing and Edge Seal Systems
Availability:
- C-Clear Anodized Aluminum: Usually Ships in 1-2 Business Days
- D-Dark Bronze: Usually Ships in 1-2 Business Days
- BSP-Black Suede Powder Coat: Usually Ships in 1-2 Business Days
-
WSP-White Suede Powder Coat: Usually Ships in 1-2 Weeks
