Pemko 303PWS Weather Stripping, Finish Painted White, for Door Frames up to 36-inch x 84-inch

Pemko 303PWS Perimeter Gasketing
Painted White Aluminum with White Silicone Insert

Pemko perimeter gasketing products are designed to seal the gap around the top and the 2 sides of a door assembly.

The side jambs are provided as two pieces. The head part is provided as one piece.

Perimeter gasketing, unless otherwise specified, is designed for openings with 1/16" gaps; however, each weather-strip can seal gaps up to the depth of its seal.

»    Punched on 6" center with slotted holes for adjustment.
»    Stainless steel fasteners are standard. Other fasteners are available upon request.
»    Rigid jamb weather-strip is shown mounted on openings with 1/16" gaps; however, each weather-strip can seal gaps up to the depth of its seal. Seal depth is provided on each illustration.
»    Category J gaskets for use with listed steel frames and/or classified steel covered composite, hollow metal doors rated up to and including 3 hours; wood and plastic covered composite doors rated up to and including 1-1/2 hours; and wood core doors rated for 20 minutes.

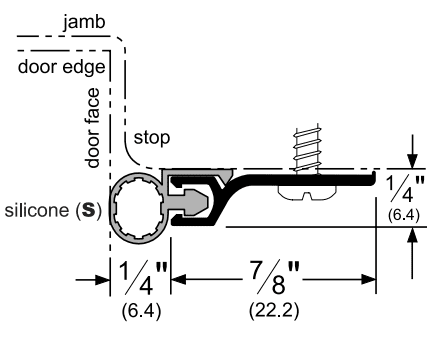

PEMKO 303PWS WEATHER STRIPPING SPECS:
»    WIDTH: 1/4” (6.4 mm)
»    PROFILE HEIGHT: 7/8” (22.2 mm)
»    TOTAL HEIGHT WITH INSERT: 1-1/8” (28.6 mm)

PEMKO 303PWS MODEL DESCRIPTION / AVAILABILITY:
»    303PWS:  Painted White Aluminum with White Silicone Insert...Ships in 2-3 Weeks After Order.

Pemko 303PWS Perimeter Gasketing
Painted White Aluminum with White Silicone Insert

Pemko perimeter gasketing products are designed to seal the gap around the top and the 2 sides of a door assembly. The side jambs are provided as two pieces. Head part is provided as one piece.

Downloads:

Cut Sheet: Click here for a cut sheet of the Pemko 303 weather stripping.

Installation: Click here for installation instructions of the Pemko 303 weather stripping.
