Pemko 303 Perimeter Weather Stripping, for Doors up to 84-inch Tall

Pemko 303 Perimeter Gasketing
Aluminum retainer w/ vinyl insert

Pemko perimeter gasketing products are designed to seal the gap around the top and the 2 sides of a door assembly. The top of the door (head) is the first number used in ordering a perimeter set of gasketing. The sides (side jambs) are the second number used in ordering. The side jambs are provided as two pieces. Numerous channels are available with a wide variety of inserts.

Perimeter gasketing, unless otherwise specified, is designed for openings with 1/16" gaps; however, each weather-strip can seal gaps up to the depth of its seal.

»    Punched on 6" center with slotted holes for adjustment.
»    Stainless steel fasteners are standard. Other fasteners are available upon request.

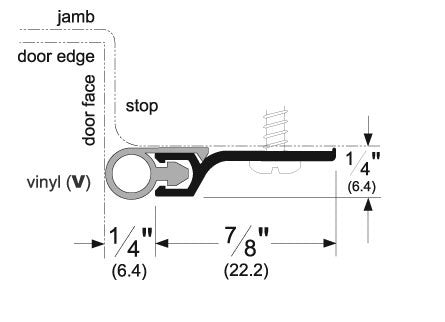

»    Rigid jamb weather-strip is shown mounted on openings with 1/16" gaps; however, each weather-strip can seal gaps up to the depth of its seal. Seal depth is provided on each illustration.
»    Stainless steel fasteners are standard.

PEMKO 303 WEATHER STRIPPING SPECS:
»    WIDTH: 1/4” (6.4 mm)
»    PROFILE HEIGHT: 7/8” (22.2 mm)
»    TOTAL HEIGHT WITH INSERT: 1-1/8” (28.6 mm)

PEMKO 303 MODEL DESCRIPTION / AVAILABILITY:

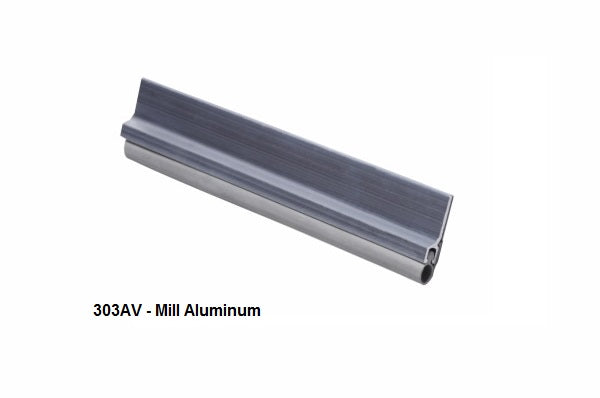

»    303AV:    A - Mill Finish Aluminum with Gray Vinyl insert...in stock.

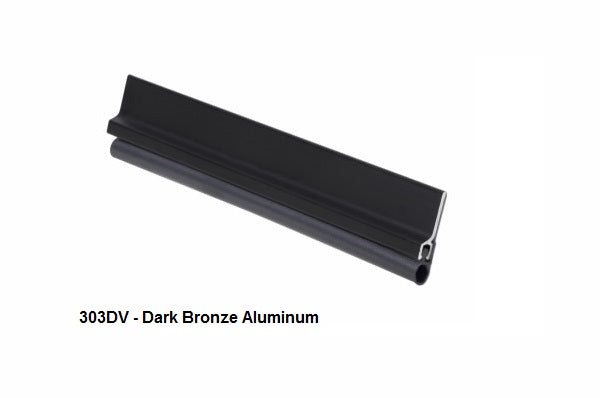

»    303DV:    Dark Bronze Anodized Aluminum with black Vinyl insert...ships in 2-3 working days.

Pemko 303 Perimeter Gasketing
Aluminum retainer w/ vinyl insert

Pemko perimeter gasketing products are designed to seal the gap around the top and the 2 sides of a door assembly. The top of the door (head) is the first number used in ordering a perimeter set of gasketing. The sides (side jambs) are the second number used in ordering. The side jambs are provided as two pieces. Numerous channels are available with a wide variety of inserts.

Downloads:

Cut Sheet: Click here for a cut sheet of the Pemko 303 weather stripping.

Installation:Click here for installation instructions of the Pemko 303 weather stripping.
