Pemko 273x224AFGT Thermal Barrier Latching Panic Threshold, x 5 5/16-inch Wide
Pemko 273x224AFGT Thermal Barrier Latching Panic Threshold, x 5 5/16-inch Wide
SKU: SKU:PEM-273x224AFGT
Product Options:
Share
Pemko 273x224AFGT Thermal Barrier Latching Panic Threshold, x 5 5/16-inch Wide Information
Pemko 273x224AFGT Thermal Barrier Threshold x 5 5/16"
Latching Panic Exit Saddle with Thermal Barrier - ADA Compliant
Latching Panic thresholds are designed to work in conjunction with surface applied vertical rod exit devices. They are also used to provide a door stop and seal at the bottom of the door. Latching Panic thresholds are supplied predrilled, with #10-24 Phillips, flat head machine screws of appropriate length.
Click here for cut sheet on the Pemko 273x224 Thermal Barrier Threshold.
Click here for installation instructions on the Pemko 273x224 Thermal Barrier Threshold.

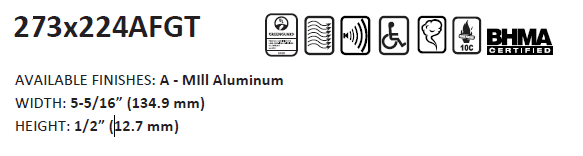

Details and product specs of the Pemko 273x224AFGT Threshold
Base Material: |
Tempered aluminum, 6063-T6 |
Size: |

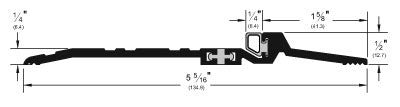

Nominal Door Width x 5 5/16" width x 1/2" max. height x straight cut |
Application: |
Designed to work in conjunction with surface applied vertical rod exit devices. They are also used to provide a door stop and seal at the bottom of the door. |
Stop: |
Integrated stop provides excellent sealing at the bottom of the door. |
ThermoSeal: |
This threshold is supplied with a ThermoSeal ("T") insert x black. |
Finish: | Mill Finish aluminum with black thermo seal insert. |
Pre-Drilled Holes | Yes - Panic thresholds are supplied predrilled, with #10-24 Phillips, flat head machine screws |
Ratings: | ADA Compliant, Air Infiltration Tested (ASTM E-283), Fire Rated - UL10C - Positive Pressure |
