Pemko 217AV U-Channel Door Bottom Door Shoe, Mill Finish Aluminum Aluminum with Gray Eco-V insert

Pemko 217 Series Door Bottom

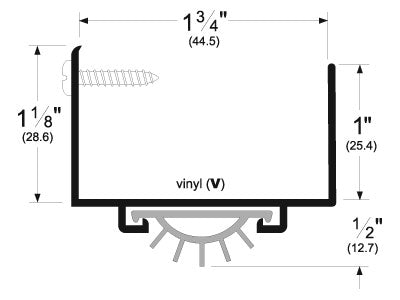

Weather-Stripped U-Channel Door Bottom w/ 1.125" / 1" Profile Height
For 1 3/4" Thick Doors

Pemko door bottom seals consist of a variety of solutions for sealing a door to the threshold or floor surface.

Door shoes are used to seal the area under a door with minimal affect on the appearance of the face of the door. In addition to sealing the gap under the door, door shoes are often used to provide protection for the bottom of the door. Pemko door shoes consist of an aluminum channel with a flexible insert in vinyl.

» This door bottom can be field cut-to-size to desired door width.

» For special order finishes please contact MDI Supply at 888.634.3667 for pricing and availability.

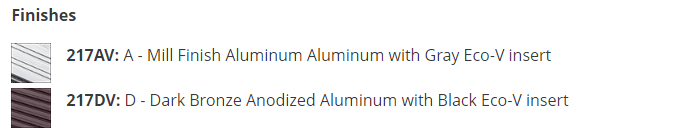

MODEL        FINISH

Pemko 217 Series Door Bottom
Weather-Stripped U-Channel Door Bottom w/ 1.125" / 1" Profile Height
For 1 3/4" Thick Doors

Click here to download Pemko 217 Door Bottom cut sheet

Click here to download the Pemko 217 installation instructions
