Pemko 2002 Weather Stripped Threshold x 3 1/8-inch Wide

Pemko 2002 Weather Stripped Threshold x 3 1/8"
Latching Panic Exit Saddle with Q-Lon Gasketing Insert

Latching Panic thresholds are designed to work in conjunction with surface applied vertical rod exit devices. They are also used to provide a door stop and seal at the bottom of the door.  Latching Panic thresholds are supplied predrilled, with #10-24 Phillips, flat head machine screws of appropriate length.

Click here for cut sheet on the Pemko 2002 Weather Stripped Threshold.

Click here for installation instructions on the Pemko 2002 Weather Stripped Threshold.

Details and product specs of the Pemko 2002 Threshold:

Base Material:	Extruded Tempered aluminum, 6063-T6

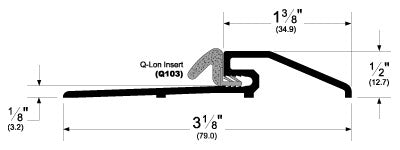

Size:	Nominal Door Width x 3 18/" width x 1/2" max. height x straight cut
Application:	Designed to work in conjunction with surface applied vertical rod exit devices. They are also used to provide a door stop and seal at the bottom of the door.
Stop:	Integrated stop provides excellent sealing at the bottom of the door.
ThermoSeal:	This threshold is supplied with a Q-Lon Kerf-in Foam Insert x gray.
Finish:	A - Mill Finish aluminum with gray Kerf-in foam insert. D - Dar Bronze anodized aluminum with gray Kerf-in foam insert. G - Gold anodized aluminum with gray Kerf-in foam insert.
Pre-Drilled Holes	Yes - Panic thresholds are supplied predrilled, with #10-24 Phillips, flat head machine screws
Ratings:	Air Infiltration Tested (ASTM E-283), Fire Rated - UL10C - Positive Pressure
Sold:	Individually
Mfg Part #:	2002_Q
MDI Supply Part #:	Pemko-2002_Q
