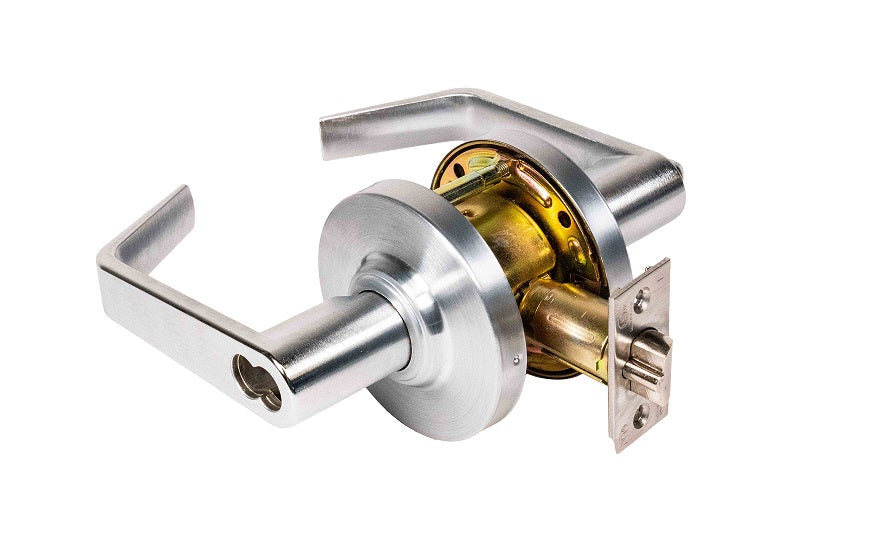

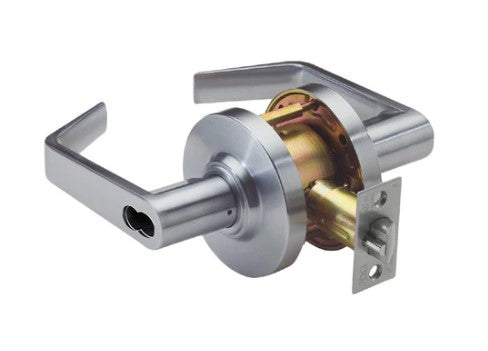

• PDQ SD116 SFIC Entrance Cylindrical Lever Lock, Commercial Grade 2, Philadelphia Style Lever, Less Core/Cylinder, US26D-Satin Chrome Finish main image
  • Image 2
1 3

PDQ SD116 SFL (SFIC) Entrance Cylindrical Lever Lock, Commercial Grade 2, PHL-Philadelphia Style Lever, Small Format Interchangeable Core Prep-Less Core/Cylinder, US26D-Satin Chrome Finish

PDQ SD116 SFL (SFIC) Entrance Cylindrical Lever Lock, Commercial Grade 2, PHL-Philadelphia Style Lever, Small Format Interchangeable Core Prep-Less Core/Cylinder, US26D-Satin Chrome Finish

PDQ Hardware

SKU: PDQ-SD116PHL-SFIC-LC-626

Availability : Usually Ships in 1-2 Business Days

$82.50
$207.90 $82.50
Sale Sold out
Shipping calculated at checkout.

Product Options:
Finish: US26D/6260-Satin Chrome
Lever Style: PHL-Philadelphia (stock)
Cylinder: Small Format Interchangeable Core prep (SFIC core is optional)
Certified: ADA compliant, 3-hour fire-rated, ANSI/BHMA A156.2 Grade 2

Click Here for Lever Styles

Click Here for SD Series Architectural Submittal Sheet

View full details

PDQ SD116 SFL (SFIC) Entrance Cylindrical Lever Lock, Commercial Grade 2, PHL-Philadelphia Style Lever, Small Format Interchangeable Core Prep-Less Core/Cylinder, US26D-Satin Chrome Finish Information

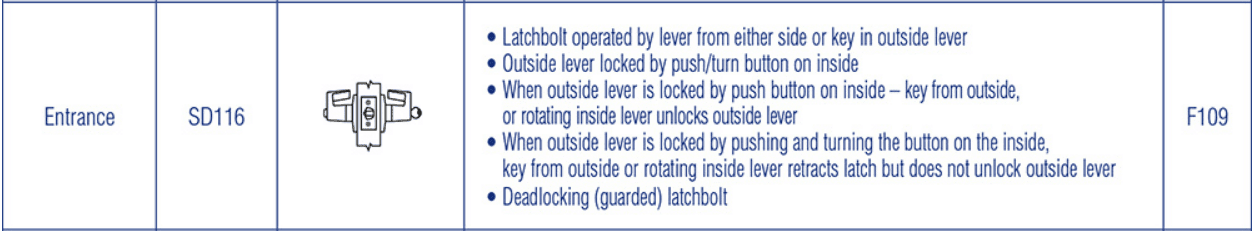

PDQ SD116PHL SFIC Series Grade 2 Lever Lock - Entrance Function
Provisioned for an SFIC - Core Not Included and is Optional

Locksets is listed by UL 10C / UBC 7-2 (1997) positive pressure, for single doors up to 4’0” x 8’0”.

Lock is certified to ANSI/BHMA A156.2–1996, Series 4000, Grade 2.

Lock fits type 160 or 161 door preparation, and has a limited 5 year warranty. Lockset is fully adjustable for 1-3/8" to 1-3/4" door thickness. Lock will accommodate keyways of major manufacturers.

Lockset fasteners to be concealed with through-the-door through-bolt attachment outside the 2-1/8" door preparation. Through-bolts to be removable, if desired.


PDQ SD116 Features:
FOR DOORS: 1-3/8" to 1-3/4" thick.
DOOR PREP: Fits standard 161 door prep (2 1/8" hole x 2 3/4" backset). Through-door through-bolting. Through-bolts removable if desired.
BACKSET: 2-3/4" is standard.
FRONT: 2-1/4" x 1-1/8" for 2-3/4" backset. Stainless steel or wrought brass.
STRIKE: 4-7/8" x 1-1/4" (ASA).
LATCHBOLT: 1/2" throw. Adjustable front for flat or beveled doors.
HAND: Non-handed.
TRIM: Zinc diecast levers/wrought brass rose.  Philadelphia (PHL) - standard.
KEYS: N/A
KEYWAYS: N/A.  Contact MDI Supply at: 888.634.3667 for more information.
CYLINDER PREP: Provisioned for SFIC - Small Format Interchangeable Core.  Core Not Included.
OPTIONAL SFIC CYLINDER: SFIC Core is optional and when ordered is supplied as Best compatible SFIC, Best A-keyway, Keyed Random, with 2-keys per cylinder and 1-Control Key per order.
FINISH: 626 (US26D).

CERTIFICATIONS: Certified to ANSI/BHMA A156.2-2003, Series 4000, Grade 2 /Meets all applicable accessibility requirements of the Americans with Disabilities Act (ADA)/U.L., U.L.C. listed for “A” label (3 hour) single swing doors (4' x 8') / UL 10C / UBC 7-2 (1997) positive pressure, for single doors up to 4’0” x 8’0”.

COUNTRY OF ORIGIN: Manufactured in the Republic of South Korea, a country that has signed a Trade Agreements Act with the U.S.A. and is identified as a Designated Country; thus, waiving the Buy American Act.

FACTORY WARRANTY: Five-year Limited Warranty.
