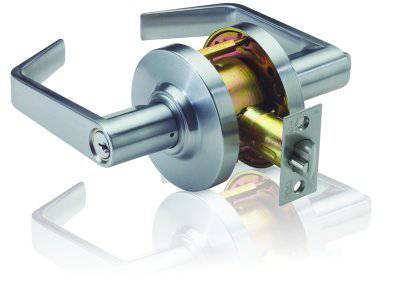

PDQ SD126 series grade 2 lever lock - passage function
Click here to download product template
Locksets is listed by UL 10C / UBC 7-2 (1997) positive pressure, for single doors up to 4’0” x 8’0”.
Lock is certified to ANSI/BHMA A156.2–1996, Series 4000, Grade 2.
Lock fits type 160 or 161 door preparation, and has a limited 5 year warranty. Lockset is fully adjustable for 1-3/8" to 1-3/4" door thickness. Lock will accommodate keyways of major manufacturers.
Lockset fasteners to be concealed with through-the-door through-bolt attachment outside the 2-1/8" door preparation. Through-bolts to be removable, if desired.
PDQ SD126 Features:
FOR DOORS: 1-3/8" to 1-3/4" thick.
DOOR PREP: Fits standard 161 door prep (2 1/8" hole x 2 3/4" backset). Through-door through-bolting. Through-bolts removable if desired.
BACKSET: 2-3/4" is standard.
FRONT: 2-1/4" x 1-1/8" for 2-3/4" backset. Stainless steel or wrought brass.
STRIKE: 4-7/8" x 1-1/4" (ASA).
LATCHBOLT: 1/2" throw. Adjustable front for flat or beveled doors.
HAND: Non-handed.
TRIM: Zinc diecast levers/wrought brass rose. Philadelphia (PHL) - standard.
KEYS: Two change keys per lock (only on keyed functions).
KEYWAYS: C-Keyway is standard (only on keyed functions). SD series is also available in keyways of other manufacturers (additional lead-time applies). Contact MDI Supply at: 888.634.3667 for more information.
CYLINDER: Brass 6-pin insert cylinder (only on keyed functions).
* KEYING (ONLY ON KEYED FUNCTIONS):
1. KD (Keyed-Different is standard): Usually ships in one business day);
2. KA (Keyed-Alike): Usually ships in 2-3 business days;
3. KD x MK (Keyed Different x Master-Keyed): Usually ships in five-seven working days.
FINISH: 626 (US26D), 605 (US3).
CERTIFICATIONS: Certified to ANSI/BHMA A156.2-2003, Series 4000, Grade 2 /Meets all applicable accessibility requirements of the Americans with Disabilities Act (ADA)/U.L., U.L.C. listed for “A” label (3 hour) single swing doors (4' x 8') / UL 10C / UBC 7-2 (1997) positive pressure, for single doors up to 4’0” x 8’0”.
COUNTRY OF ORIGIN: Manufactured in the Republic of South Korea, a country that has signed a Trade Agreements Act with the U.S.A. and is identified as a Designated Country; thus, waiving the Buy American Act.
FACTORY WARRANTY: Five-year Limited Warranty.
