PDQ GT Series Grade 1 Keyed Lever Lock, US26D-Satin Chrome Finish

1-3/4" to 2-1/4" thick. Factory adjusted for 1-3/4".

DOOR PREP:

Fits standard 161 door prep. Through-door thru-bolting.

BACKSET:

2-3/4" only. Guarded.

CASE:

Heavy duty zinc die-cast, investment cast and chromated cold rolled steel mechanism.

Billet steel spindles.

FRONT:

Stainless steel, wrought brass, or wrought bronze. 2-1/4" x 1-1/8". Beveled 1/8" on 2".

ROSE:

3-3/8" diameter.

4-7/8" x 1-1/4"(ASA). "T" or "FL" Strike optional.

Stainless Steel, wrought brass or wrought bronze.

LATCHBOLT:

9/16" Throw. Adjustable front for flat or beveled doors.

HAND:

Non-handed

PHL, BSN or MIA levers are solid zinc diecast. 41° lever rotation. Wrought brass roses. Concealed screws.

KEYS:

Two (2) change keys per lock.

KEYWAYS:

Schlage C Keyway - standard - conventional core.

Yale GA Keyway - conventional core.

Arrow AR1 Keyway - conventional core.

Corbin L4 Keyway - conventional core.

Schlage E Keyway - conventional core.

Sargent LA Keyway - conventional core.

Falcon E-R Keyway - conventional core.

Contact MDI Supply at: 888.634.3667 for more information.

INTERCHANGEABLE CORE:

Available for all keyed functions / 6 or 7-pin.

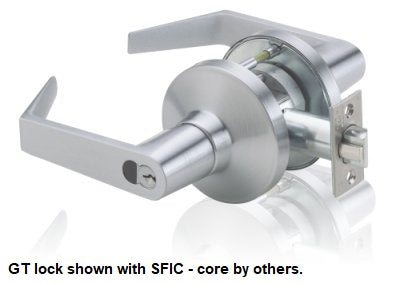

SFIC - Small Format IC Core Prep, Less Core.

CYLINDER:

Brass 6-pin insert cylinder keyed to 5-pins

KEYING:

Can be MK, CMK, GMK. Available Zero bitted (KO), Keyed Different (KD), Keyed Alike (KA). Can be keyed into existing master key systems of other manufacturers.

FINISHES:

605 (US3), 606 (US4), 612 (US10), 613 (US10B), 625 (US26), 626 (US26D)

U.L. LISTED:

U.L., U.L.C. listed for “A” label (3 hour) single swing doors (4' x 8') / UL 10C / UBC 7-2 (1997) positive pressure, for single doors up to 4’0” x 8’0”

CERTIFICATIONS:

ANSI A156.2, Series 4000, Grade 1. Meets all applicable accessibility requirements of the ADA. U. L. Listed. BHMA.
