PDQ GP115 Storeroom Lever Lock, Conventional Cylinder, C-Keyway, US26D-Satin Chrome

PDQ GP115 Storeroom Lever Lock, Conventional Cylinder, C-Keyway, US26D-Satin Chrome

SKU: SKU:PDQ-GP115

Availability : Usually ships in 5-7 business days

Regular price $110.00
Regular price $330.00 Sale price $110.00
Sale Sold out
Shipping calculated at checkout.

Product Options:

Finish: 626/US26D-Satin Chrome-Most Common
View full details

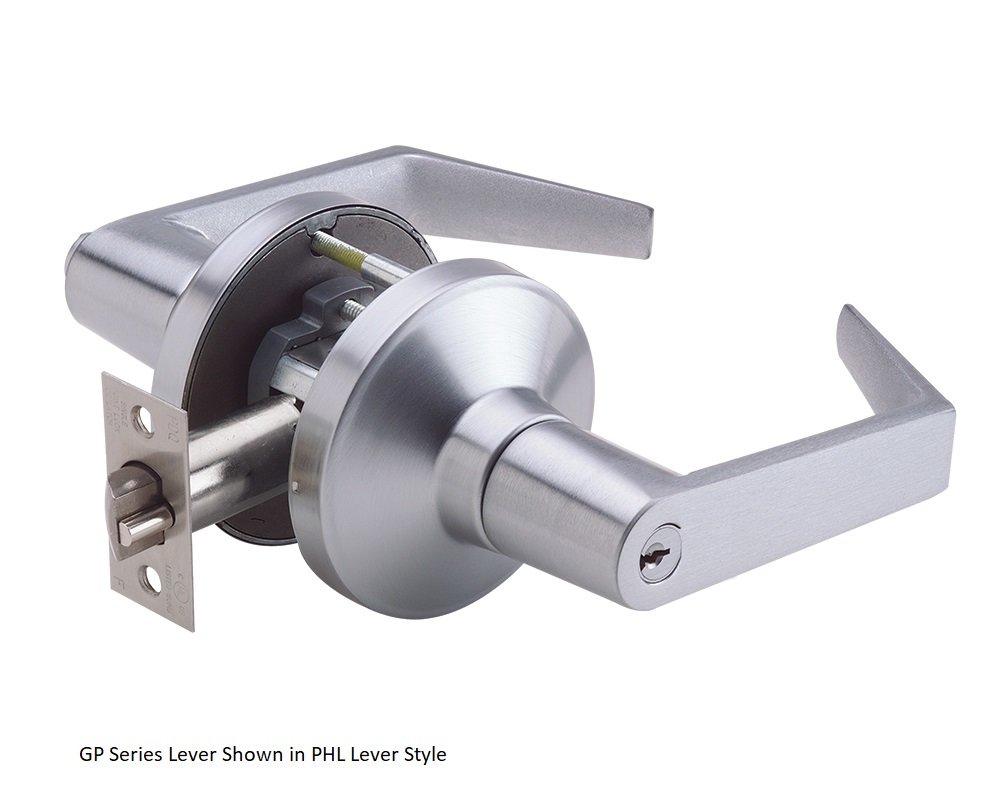

PDQ GP115 Storeroom Lever Lock
PDQ’s GP Series Grade 2 cylindrical lock is the toughest Grade 2 lock on the block! It uses the same lever and rose as the PDQ Grade 1 product. It’s tested to over the ANSI/BHMA standards.

Details and product specs of the PDQ GP Series Grade 2 Lever Lock:

Door Thickness: 1-3/8” to 1-3/4” thick.  Factory Preset for 1-3/4” door
Door Prep & Backset: 161 Door prep x 2 3/4" Backset
Torque Resistance: Exceeds 1600 in. lbs.
Material: Heavy duty zinc diecast, investment cast, cold rolled steel, stainless steel and Acuzinc® mechanism
Strike / Latchbolt:

ASA standard 4 7/8" / 1/2" throw

Rose: 3-3/8” DIA Wrought
Hand:

Non-Handed

 Available Finish: 626 (US26D) - Satin Chrome - Most Common & Readily Available.
605 (US3) - Bright Brass, 606 (US4) - Satin Brass, 612 (US10) - Satin Bronze, 613 (US10B) - Oil Rubbed Bronze, & 625 (US26) - Bright Chrome are available.  Please contact MDI for a special price quote and availability.

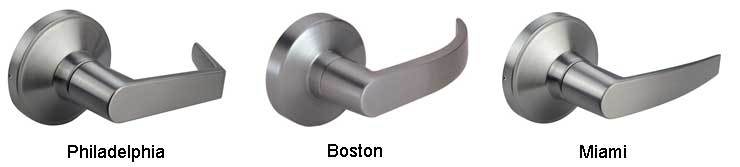

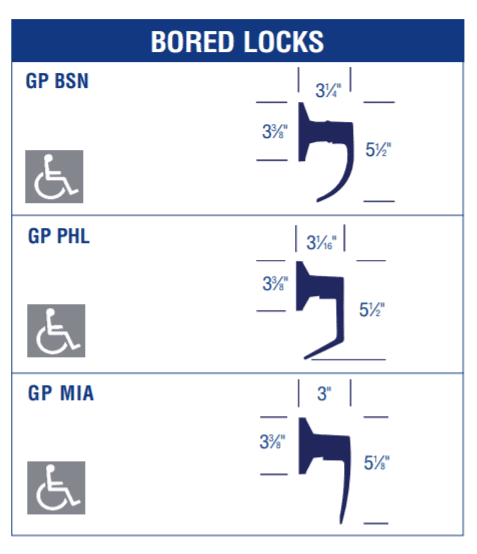

Trim: Solid Zinc diecast: PHL (Philadelphia), BSN (Boston) or MIA (Miami) Levers
Keyway: SCC standard (Schlage C Compatible).  Available on keyed functions only.  Not applicable on Passage, Privacy or Dummy functions.
Cylinder: Conventional Cylinder 6-pin Brass Insert Cylinder keyed to 5-pins.  Please note that two change keys are supplied with each lock.  If the "Master-Keyed" option is chosen you will receive two master keys.  Available on keyed functions only.  Not applicable on Passage, Privacy or Dummy functions.
Fire Rated Listing: UL/CUL 10C listed for 3 hrs, for single doors up to 4’0” x 8’0”.
Certifications & Compliance:

Certified to ANSI/BHMA 156.2-2003, Grade 2.
Windstorm Rated - Florida Building Code listed FL3262, ANSI A250.13, ASTM E1886, ASTM E330, Outswing: 350 ft-lbs., Inswing: N/R, Design Load Rating: 685 lbf.
Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings

Country of Origin: Assembled in the U.S.A. with U.S. and foreign material. Meets requirements of the Buy American Act.
Warranty: Factory Eight (8) Year Limited Warranty
Packaged & Sold: Individually
   PDQ Logo



PDQ GP115 Storeroom Lever Lock
PDQ’s GP Series Grade 2 cylindrical lock is the toughest Grade 2 lock on the block! It uses the same lever and rose as the PDQ Grade 1 product. It’s tested to over the ANSI/BHMA standards.

Downlaods the PDQ GP Series Grade 2 Lever Lock:

Submittal Sheet: Click here to download the Submittal Sheet for the PDQ GP Series Lever Lock
