PDQ 5101 Surface Door Closer
The PDQ 5101 door closer is ideal for commercial applications where ease of use and installation are required at an economical price. The 5101 closer comes standard as Tri-Packed for regular, top jamb and parallel arm installations. Adjustable size 1-6 with separate hydraulic backcheck, sweep & latch.
Details and product specs of the PDQ 5101 Series Grade 1 heavy duty door closer:
| HANDING: |
|
| OPERATION: |
|
| BODY: |
- High strength aluminum alloy
|
| ARM: |
|
| ARM OPTIONS: |
- Hold open Arm
- DS/DSHO heavy duty parallel stop arm
- Track/hold Open Arm
- Spring cushion stop for DS/DSHO
-
EDA (Extra Duty PA Arm).
Contact MDI for special order arm optrions.
|
| PISTON: |
- Hardened steel, 1-1/2” Dia
|
| ADJUSTMENT: |
- Adjustable controlled closing
- Separate hydraulic backcheck standard
- Separate sweep, latch, and backcheck intensity valve
|
| SIZE: |
|
| MOUNTING: |

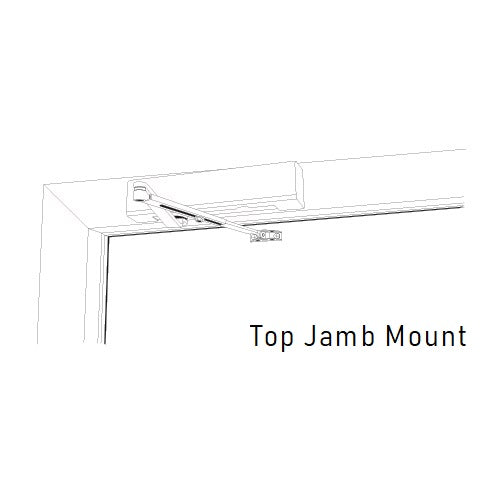

- Tri-Packed for regular, top jamb and parallel arm installations
- Fasteners furnished for wood or metal doors and frames
- Self-drilling, self-tapping screws available
|
| COVER: |
- Full plastic cover standard (non-handed), optional full metal cover
|
| FINISHES: |
- Standard: 689-Aluminum, 695-Duro Bronze (Dark Brown),
- Special Order: 696-Gold, 605-Polished Brass, 626-Satin Chrome
|
| CERTIFICATION: |
- UL and ULC listed
- UL 10C listed
- Certified to ANSI/BHMA A156.4-2006 Grade 1
- Meets requirements of the Buy American Act
|
| WARRANTY: |
- Twenty-five (25) year limited warranty
|
| PACKAGED & SOLD: |
|
