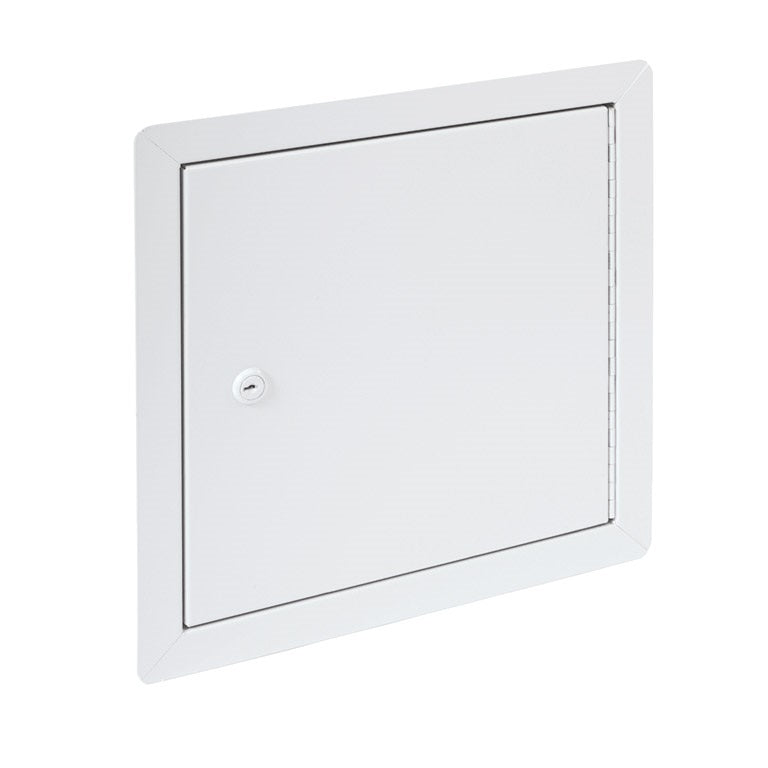

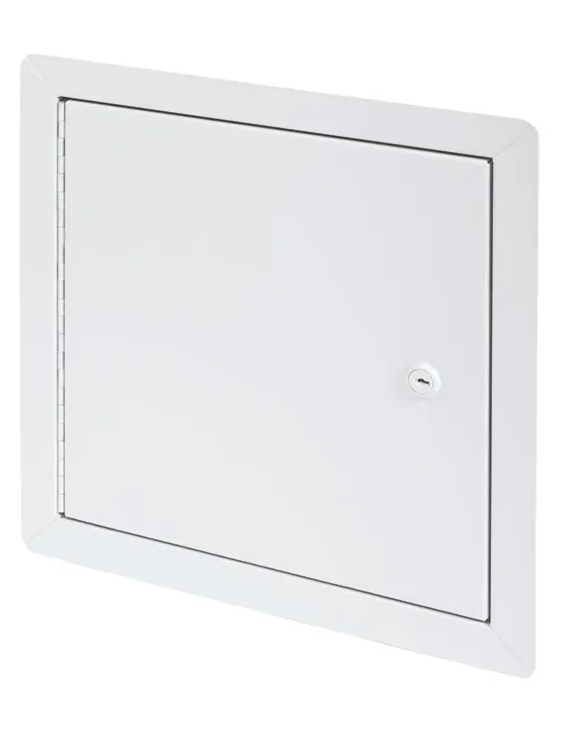

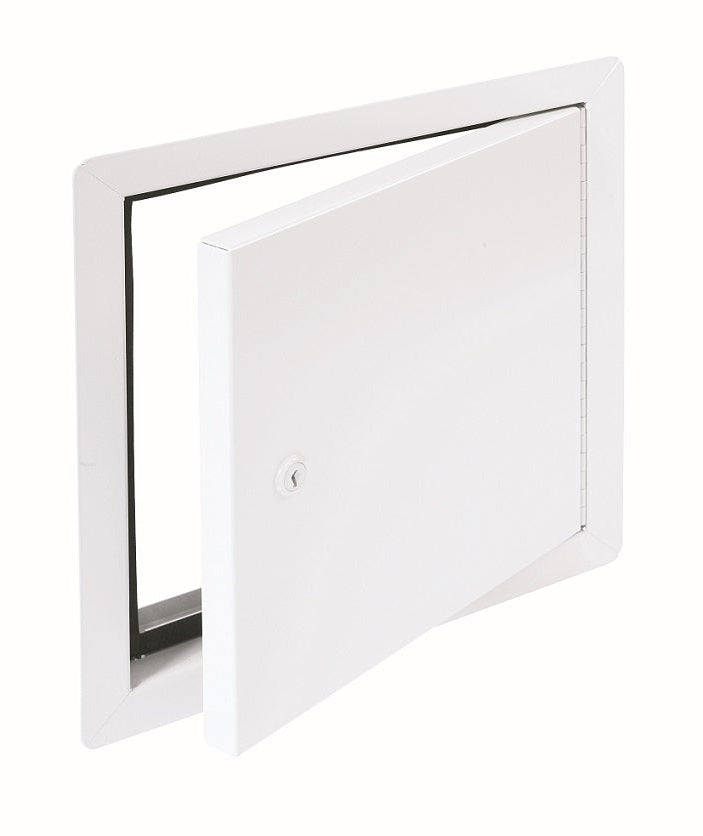

PAL Aluminum Insulated Access Panel with Gasketing, Prime Painted

Aluminum Insulated Access Doors

The PAL aluminum access door comes standard with a cylinder lock & key, neoprene gasket and fiberglass wool insulation to reduces sound and air transfer between partitions.

Note:  If you don't want a key lock on this door, there is a no charge option for a screwdriver cam latch.

Standard design access door with 1" thick insulation.  This door & frame come standard as 16 gauge aluminum with perimeter gasketing and a cylinder lock & key.  Probably the most important feature of this access door is that it is unlike our competitors; the PAL access door comes standard with an aluminum door, aluminum frame and continuous aluminum hinge.

Some of our competitors' aluminum access doors utilize an aluminum door, steel frame and stainless steel hinge...three dissimilar metals leaving a greater chance for a galvanic reaction and possible rust & corrosion.

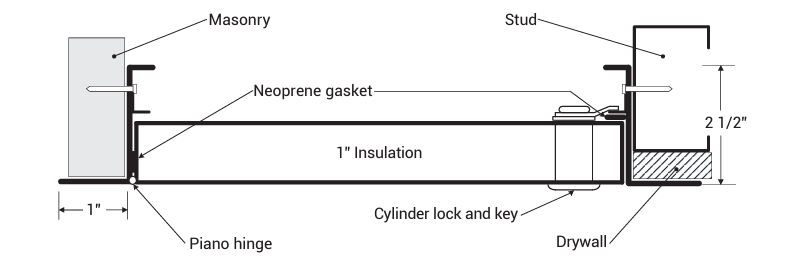

Specs & Features of the PAL Aluminum Insulated Access Door:

• Installation: Walls and ceilings
• Material: Aluminum
• Insulatation: 1" thick mineral wool
• Gasketing: Neoprene all around perimeter (standard)
• Locking mechanism:
  • Standard:  Key-operated cylinder cam latch

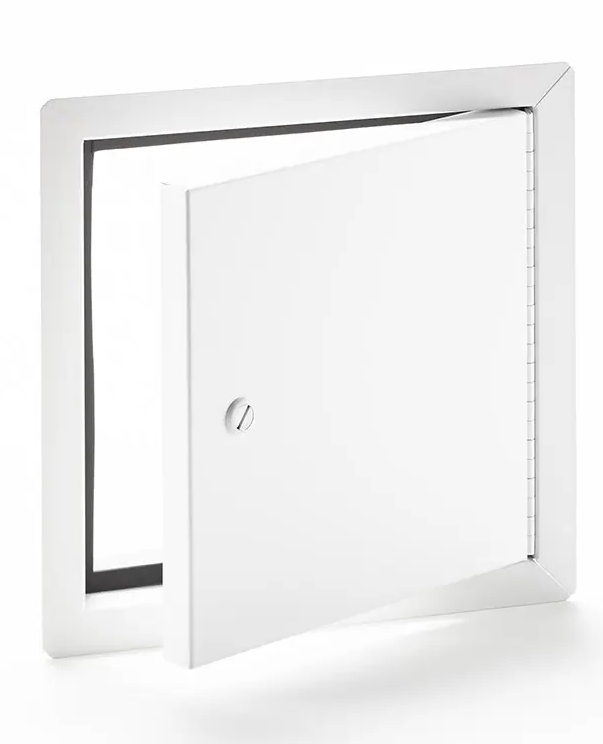

  • Optional:  Screwdriver operated cylinder cam latch
• Hinge: Aluminum piano hinge (standard)
• Flange: Exposed flange
• Finish: Powder coat white primer.  Finish painting by others.
• Size: Special order sizes available upon request
• Rough Opening:  Width + 1/4" x Height + 1/4". *

For Exterior Installations:

• Apply exterior grade water-proof silicone (caulk) bead behind flange prior to installation and against flange after installation.
• All seams and pre-drilled holes must be filled with exterior grade water-proof silicone (caulk) after installation.
