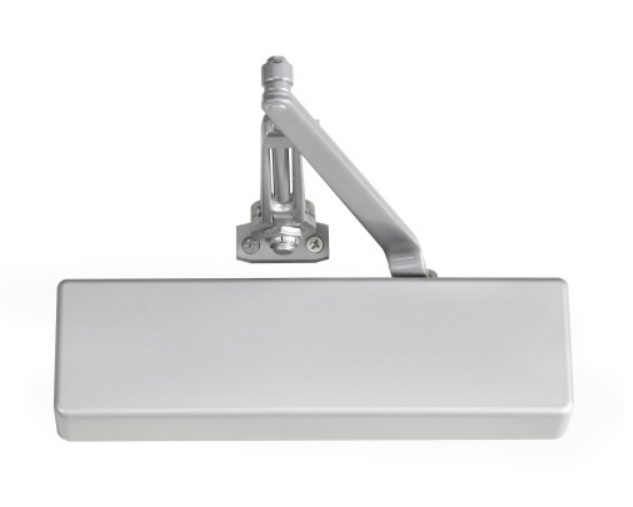

Norton 7500H Door Closer w/ Hold Open
Heavy Duty Insitutional Door Closer w/ Hold-Open Arm
The 7500 Series is a robust, multi-sized surface closer designed to deliver superior performance and long-term reliability. Ideal for interior or exterior doors in high security and institutional facilities that demand reliability. It is commonly used on standard commercial hollow metal doors and frames, commercial wood doors and commercial FRP doors & frames.
Hold-Open Feature:
Achieved by means of ball and detent/roller. Ball and detent or roller hold open is effective in a range of 85° to 110°.
Compliance Note: Hold open arm door closers are not permitted for use on fire doors.
Features & Specs of the Norton 7500H Closer:
-
Closer Type: Surface
- Maximum Door Weight: 250 lbs
- Traffic Rating: High Traffic
- Warranty: 30-year limited factory warranty
- Cast Aluminum Body
- Adjustable, heavy-duty spring sizes 1-6
- Tri-packed
- Larger 1-1/2" (38mm) diameter piston
- Non-handed
- Projection: 2-1/8"
- Interior or exterior doors
- Staked valves
- All standard arm applications allow doors to swing 180, conditions permitting
- Slide track - push or pull side mounting
- Standard, separate and independent latch, sweep, and backcheck intensity valves
- Retrofit plates, drop plates, back plates, mounting plates, brackets available by special order. Contact MDI Supply for more details.
- Available fasteners: sex nuts, thru-bolt grommet nuts, Torx®
Benefits of the Norton 7500H Closer:
- Constructed with robust materials and internal components
- One package covers regular, top jamb, and parallel arm mounting
- Stringent testing supports a long-life of reliability
- Low profile projection provides clean aesthetic
- Arm configurations meet broad range of applications
- Staking limits ability to accidentally back out the valve while adjusting closer
- Extensive offering of accessories to assist with the most difficult applications
- Proprietary lubricate delivers optimal performance and efficiency
Certifications of the Norton 7500H Closer:
- ANSI/BHMA A117.1, ANSI/BHMA A156.4, Grade 1
- Americans with Disabilities Act (ADA) Compliant
- Buy American Act*
- Environmental Product Declaration (EPD)
- Health Product Declaration (HPD)
- UL 10C Positive Pressure up to 3 hours
- UL-cUL Listed
*Domestic Sourcing regulations vary greatly within Federal, state and local government agencies and therefore certain restrictions may apply.
