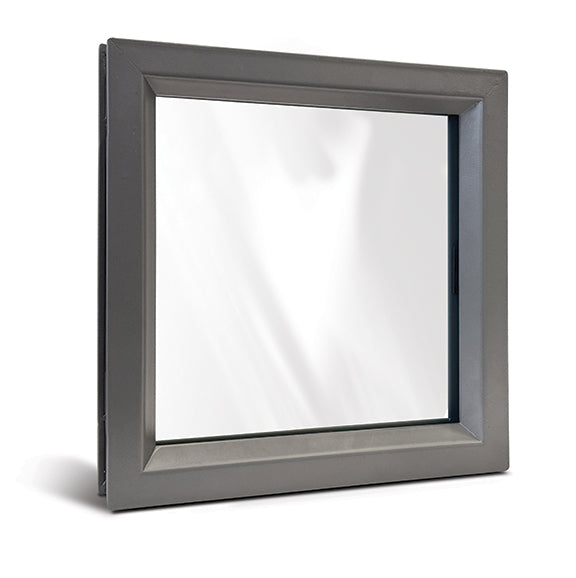

NGP STORM-PRO-HR Complete Vision Kit & Glass - Hurricane Rated Vision Lite Kit - Low Profile Design
National Guard Products STORM-PRO-HR Vision Kit & Glass
STORM-PRO TURNS STORMAGEDDON INTO JUST ANOTHER DAY AT THE OFFICE.
Storm-Pro Hurricane-Rated Lites & Louvers aren’t just tested - they’re trusted. Backed by Florida Building Code component-level certification, they give you unmatched performance and flexibility. Pair them with the hurricane-rated hollow metal door of your choice and rest easy knowing you’re protected. Designed to withstand extreme weather without sacrificing design or ease of installation, Storm-Pro products are the reliable solution for projects where performance under pressure isn’t optional - it’s essential.
Features & Specs of the NGP STORM-PRO-HR Complete Kit:
- For 1-3/4" Thick Doors Only
- 20 Ga. Galvanneal A40 Steel
- Mitered and Welded Corners
- Countersunk Mounting Screw-Holes
- Fasteners Included: #8 X 1-3/4" Phillips Head SMS
- Maximum Order Size: 30" X 64" - Special order sizes are available
- Galvanneal – A40 Steel
- Finish: Gray Primer (GPZ) Powder Coat Finish - Standard
- The STORM-PRO-HR Complete Kit is Made in the USA.
Size Note: If you don't see a size you need, give us a call at 888.634.3667 or send us an email to orders@mdisupply.com and we'll be happy to provide a price quote. Please include your full billing & shipping info, contact person and phone number.
What's Included:
- The STORM-PRO-HR Low Profile Steel Lite Kit
- 1/2" Laminated Glass: 2 pcs. 3/16" Clear Glass with PVB Interlayer
- Structural Silicone Sealant DOW 995
- Siliconized Acrylic Caulk, White
- Fasteners
Testing Certifications & Code Compliance:
- Hurricane-Rated
- Florida Building Code #FL47124
- Design Pressure = +/- 75 PSF
- Missile level "D" and includes Wind Zone 4 as defined in ASTM E 1996 and FBC Sections 1609.1.2.2 & R301.2.1.2.1.
- Meets the water infiltration requirements for the "HVHZ" *
- Maximum Size 30" x 64"
- Hazard - Hurricane
- This Product is Not Rated for Use on Fire-Rated Doors
- Designed for Use on Doors Manufactured Within Door Industry Tolerance of +/- 1/16"
Availability: Usually Ships in 2-3 Weeks After Order
* HVHZ stands for High Velocity Hurricane Zone, a designation for areas, primarily in Florida's Miami-Dade, Broward, and coastal Palm Beach counties, that experience extremely high wind speeds and debris impacts during hurricanes. Building codes and product approvals in these zones are more rigorous than other hurricane-prone areas, requiring products like windows and doors to withstand severe wind loads and projectile impacts from flying debris. Products certified for HVHZ use are considered the most robust and reliable for hurricane protection. Designated for areas where the maximum design wind speed is 140 mph or more.
