National Guard Products 97V Surface Door Sweep x Vinyl Seal

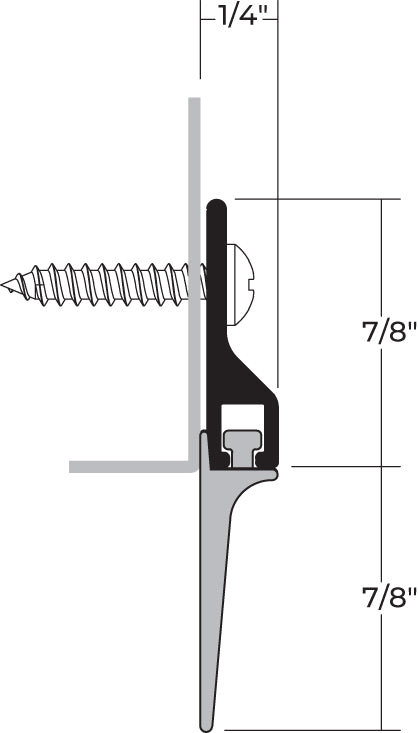

The NGP 97 Door Sweep has an aluminum retainer with a vinyl seal. It is surface applied to create a seal between between door bottom and a threshold (or floor) to seal small gaps up to 1". Available in choice of finishes and length and can be field trimmed to meet specific requirements.
Features of the NGP 97V - Surface Door Sweep w/ Vinyl Seal
- Aluminum alloy 6063, T5 temper
- Thermoplastic Polymer: Polyvinyl Chloride Formulated With an Environmentally Friendly Bio-Based Plasticizer
- Economical
- Flame-Resistant
- Moisture-Resistant
- Temperature Range 0°F to 140°F
- Oxidative Degradation From Age and Exposure to Cold, Heat and UV Causes Hardening, Loss of Memory and Resilience, Cracking, Crazing and Discoloration
- #6 x 3/4" Stainless Steel SMS (Sheet Metal Screws) Furnished
- Screw Holes Slotted for Adjustment
- Vinyl seal is black
Certifications:
- CERTIFIED: by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
- POSITIVE PRESSURE: - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
- AIR INFILTRATION TESTED to ASTM E283: Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
-
SMOKE & DRAFT CONTROL GASKETING: Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
-
Available Finish:

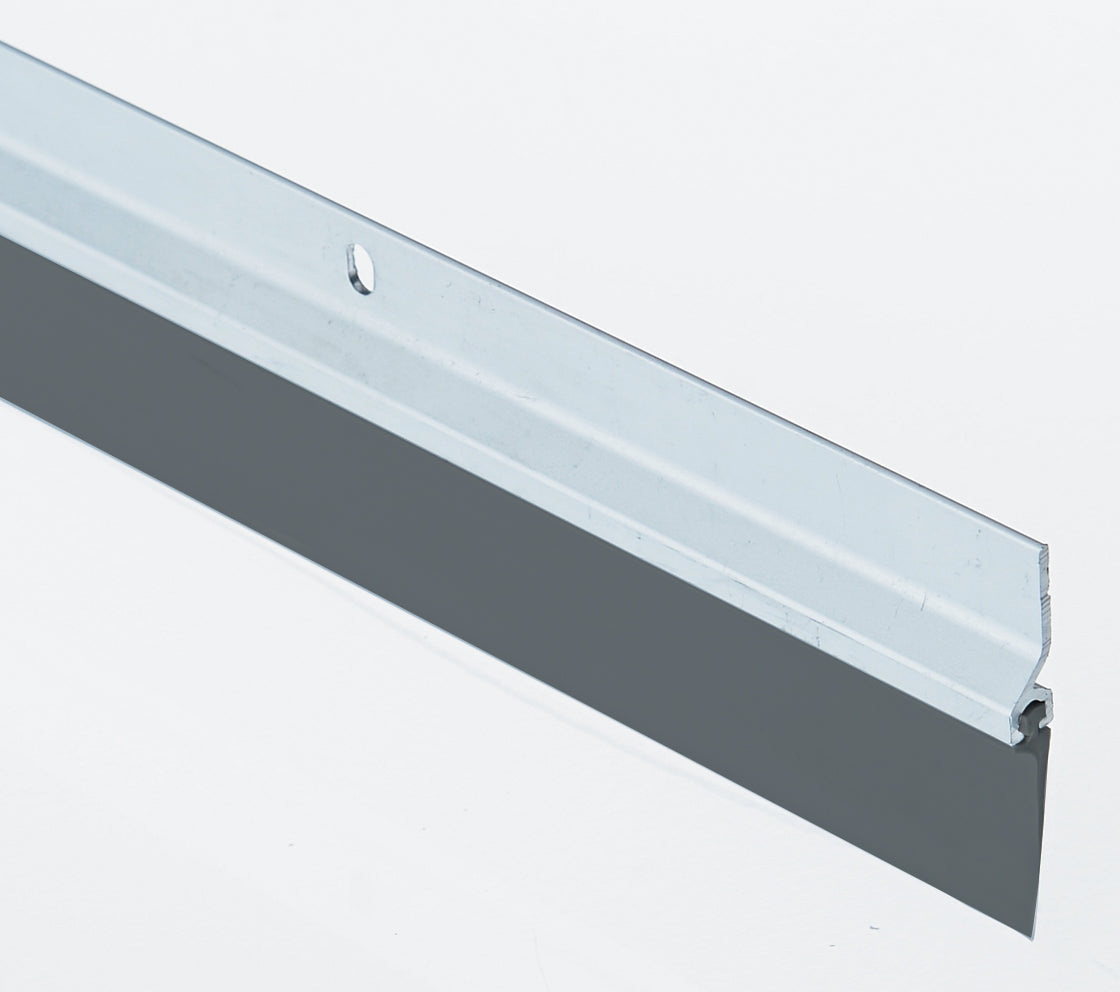

- 97V: Mill Aluminum Retainer x Black Vinyl Seal

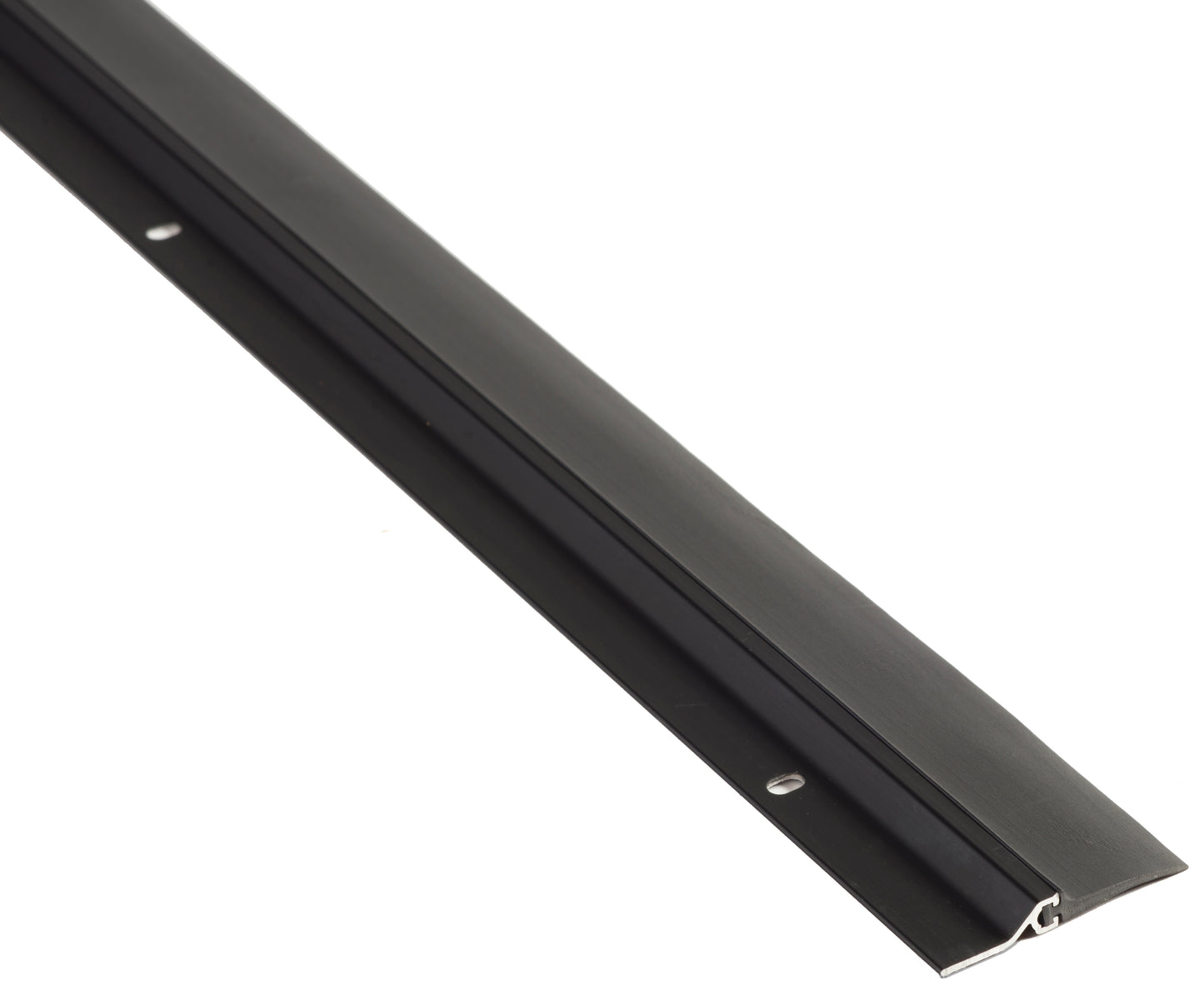

- 97VDKB: Dark Bronze Aluminum Retainer x Black Vinyl Seal
-
Lead-Time:
- Usually Ships within 3-5 business days
- This item is special order and once ordered it cannot be canceled, returned or exchanged.
