NGP 896S Saddle Threshold with Silicone Bumper Seal, 5-inch x 1/2-inch, Mill Aluminum

NGP 896S Saddle Threshold with Silicone Bumper Seal, 5-inch x 1/2-inch, Mill Aluminum

NGP - National Guard Products

SKU: NGP-896S-36

Availability : Usually Ships in 5-7 Business Days

$39.00
$69.00 $39.00
Sale Sold out
Shipping calculated at checkout.

Product Options:
For Use: For use where forklift or vehicular traffic occurs
Recommeded For: Recommended for delivery/storage doorways where heavier loads travel
Top Style & Size: Fluted Top 5" Deep x 1/2" Height

Click here for a Cut Sheet on the NGP 896HDV Heavy Duty Threshold

View full details

NGP 896S Saddle Threshold with Silicone Bumper Seal, 5-inch x 1/2-inch, Mill Aluminum Information

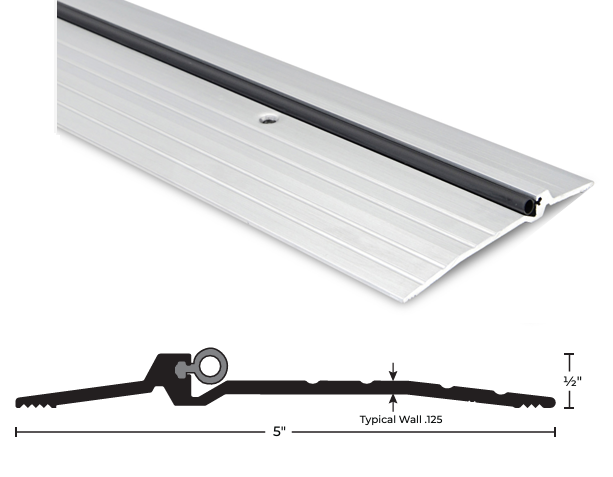

NGP 896S Heavy Duty Saddle Threshold with Silicone Seal, 5" x 1/2"

The National Guard Products 896S saddle threshold.

  • Flute Top
  • 5" wide x 1/2" height
  • BHMA Certified To ANSI A156.21 Heavy-Duty 1,000 Lb. Load Test
  • Optional SIA Slip-Resistant Finish Recommended in Moisture Prone Areas
  • Contact MDI for special price quote on SIA finish.

Features of the NGP 896S Threshold:

  • BUMPER SEAL Seals Against the Door to Provide Weather Resistance
  • Fluted Top
  • BHMA Certified to ANSI/BHMA A156.21  10,00 Lb. Load Test.
  • Typical Wall Thickness: .125"
  • Weight: 1.01 Lbs./Ft.
  • #10 x 1 1/2" FH Zinc Plated Wood Screws Included.

Specifications of the NGP 896S Saddle Threshold:

  • Base Material: Aluminum Alloy 6063, T5 Temper
  • Fasteners:   #10 x 1 1/2" FH Zinc Plated Wood Screws Included.
  • Width: 5"
  • Profile Height: 1/2"
  • Seal: Silicone bumper seal is black
  • Finish: Mill Alum

Certifications:

  • ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
  • CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
  • POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
  • ANSI/BHMA CERTIFIED. Certified thresholds comply with American National Standard for Thresholds ANSI/BHMA A156.21 1,000 lb. load test and are listed in the BHMA Certified Products Directory.
  • AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
  • ACOUSTICAL TESTED to ASTM E90 Standard Test Method for Laboratory Measurement of Airborne Sound Transmission Loss of Building Partitions and Elements, and ASTM E2235 Standard Test Method for Determination of Decay Rates for use in Sound Insulation Test Methods. Refer to information on pages G8 thru G10 of our Gasketing catalog for test result data.

Availability:  Usually Ships in 5-7 Business Days
