NGP 896HDV Heavy Duty Saddle Threshold with Vinyl Seal, 5" x 1/2"
The National Guard Products 896HDV saddle threshold is for heavy duty applications.
- Typically used of locations Where Forklift or Vehicular Traffic Occurs.
- Recommended for Delivery/Storage Doorways Where Heavier Loads Travel.
- BHMA Certified To ANSI A156.21 Heavy-Duty 10,000 Lb. Load Test
- Optional SIA Slip-Resistant Finish Recommended in Moisture Prone Areas. Contact MDI for special price quote on SIA finish.
Features of the NGP 896HDV Heavy Duty Threshold:
- BUMPER SEAL Seals Against the Door to Provide Weather Resistance
- Fluted Top
- BHMA Certified to ANSI/BHMA A156.21 10,000 Lb. Load Test.
- Recommended for Delivery/Storage Doorways Where Heavier Loads Travel
- For Use Where Forklift or Vehicular Traffic Occurs
- Typical Wall Thickness: .125"
- Weight: 1.01 Lbs./Ft.
- #10 x 1 1/2" FH Zinc Plated Wood Screws Included.

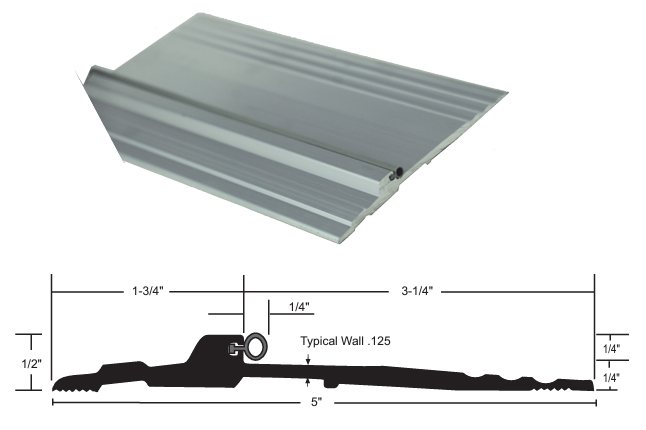

Specifications of the NGP 896HDV Heavy Duty Saddle Threshold:
- Base Material: Aluminum Alloy 6063, T5 Temper
- Fasteners: #10 x 1 1/2" FH Zinc Plated Wood Screws Included.
- Width: 5"
- Profile Height: 1/2"
-
Seal: Vinyl bumper seal is black
-
Finish: Mill Alum
Certifications:
- ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
- CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
- POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
- AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
- ANSI/BHMA CERTIFIED. Certified thresholds comply with American National Standard for Thresholds ANSI/BHMA A156.21 Heavy Duty 10,000 lb. load test and are listed in the BHMA Certified Products Directory.
Availability: Usually Ships in 5-7 Business Days
