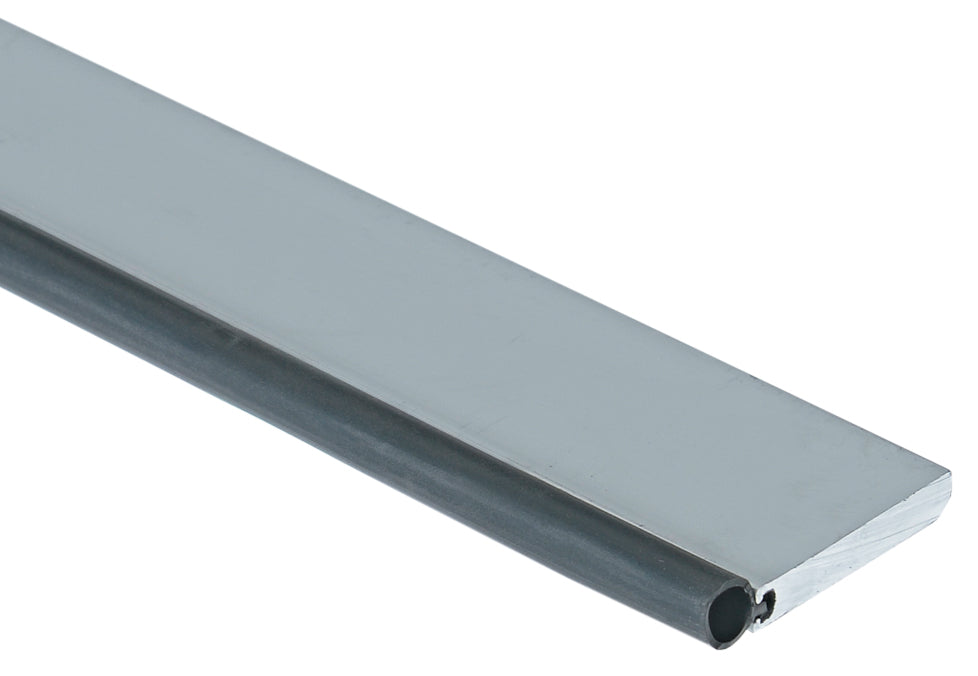

NGP 700N Mill Aluminum Finish Solid Perimeter Door Seal w/ a Black Neoprene Insert Information
NGP 700N Mill Aluminum Finish, Perimeter Door Seal w/ a Black Neoprene Insert
Features of the NGP 700N Mill Aluminum Finish Perimeter Door Seal w/ a Black Neorene Insert
Aluminum Alloy 6063, T5 Temper
Synthetic EPDM Rubber in Polypropylene Thermoplastic Matrix
Very Good Abrasion Resistance, Tensile Strength and Memory
Flame-Resistant
Moisture-Resistant
Temperature Range -81°F to 275°F
Good Resistance to Ozone, Sunlight and Aging
BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat and Cold
No Break-in Seal for Closer Mounting
Closer and/or Overhead Holder Attach to Frame Through Weatherseal Section. Install Seal First
Allows Mounting of Rim Exit Device Strikes Without Notching Gasketing
Head Section Not Drilled
Jamb Sections Furnished With Slotted Holes for Adjustment
Self-Drilling #8 (Tek Type) Screws Furnished

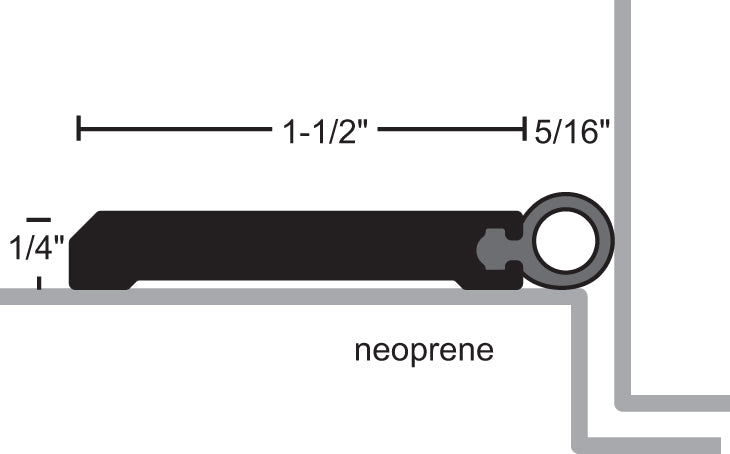

Solid Retainer Dims: 1 1/2" x 1/4"
Seal Dims: 5/16"
Seal Color: Neoprene is Black
Mount Location: On Door Frame
Finish: Mill Aluminum
Size: Noted as "Width x Height"
Certification:
AIR INFILTRATION TESTED to ASTM E283: Recommended product for minimum Air Leakage and a tight seal around the perimeter of doors.
POSITIVE PRESSURE: CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
SMOKE & DRAFT CONTROL GASKETING: Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
ANSI Certified: UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
ANSI/BHMA CERTIFIED: Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
