NGP 513HD Heavy Duty Saddle Threshold 5" x 1/4" ADA Compliant

NGP 513HD Heavy Duty Saddle Threshold 5" x 1/4" ADA Compliant

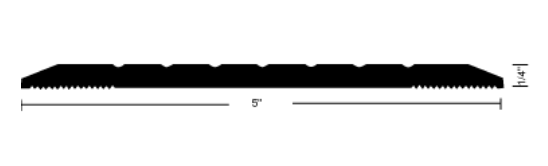

The NGP 513HD is a heavy duty solid, 5" wide x 1/4" high aluminum saddle/threshold designed for high traffic, industrial applications, including forklift and vehicular areas.

Features of the NGP 513HD Heavy Duty Saddle Threshold 5" x 1/4" ADA Compliant

• Aluminum alloy 6063, T5 temper
• 5" wide x 1/4" tall
• ADA Compliant
• Fluted top
• Recommended for delivery/storage doorways where heavier loads travel
• For use where forklift or vehicular traffic occurs
• Weight: 1.4 lbs./ft.
• #10 x 1-1/2" FH zinc plated wood screws included. Dark bronze finish screws supplied with DKB thresholds


 Certification:

• CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B: Complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.

• ADA COMPLIANT: Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.

• POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C: Complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.

• ANSI/BHMA CERTIFIED: Certified thresholds comply with American National Standard for Thresholds ANSI/BHMA A156.21 Heavy Duty 10,000 lb. load test and are listed in the BHMA Certified Products Directory.

• Available Finish:

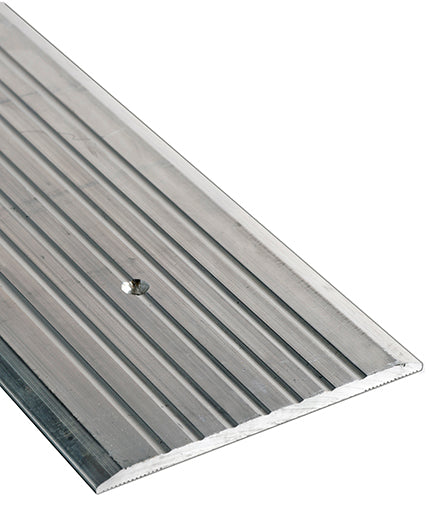

  - HD: Mill Aluminum

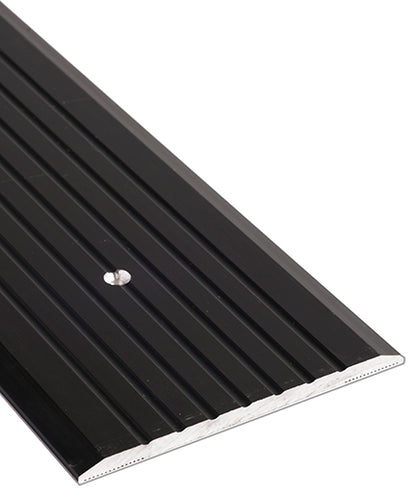

  - DKB: Dark Bronze Aluminum

  Lead-Time:
  - Usually Ships within 1-2 Weeks After Order
